C150A

C150A-LEFT FRONT TIRE PRESSURE TRANSPONDER MODULE VOLTAGE HIGH





Theory of Operation
The Tire Pressure Transponder Module is used to automatically learn the location of each wheel sensor on the vehicle. The module is controlled and activated in sequence by the Wireless Control Module (SKREEM) over a LIN bus. When activated, the module will generate a 125 KHz signal of sufficient field strength to activate the tire pressure sensor and force a RF transmission from the sensor.
^ When Monitored:
Continuously.
^ Set Condition:
The WCM receives a message from the Tire Pressure Transponder Module indicating that an over voltage condition has been detected.

Possible Causes
- INTERMITTENT TIRE PRESSURE TRANSPONDER MODULE PERFORMANCE DTC
- (F500) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE
- (Z901) GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE
- TIRE PRESSURE TRANSPONDER MODULE
- WIRELESS CONTROL MODULE (SKREEM)

Diagnostic Test
1. DTC STATUS IS ACTIVE
Turn the ignition on.

NOTE: If a system or battery voltage high DTC is set in the Wireless Control Module (SKREEM) or in the PCM, repair the voltage DTC before continuing with this test. With the scan tool, select View DTC's in the Wireless Control Module (SKREEM).

Is the DTC status Active at this time?
YES >>Go to 2
NO >>Go to 6





2. (F500) FUSED RUN RELAY OUTPUT CIRCUIT OPEN OR HIGH RESISTANCE

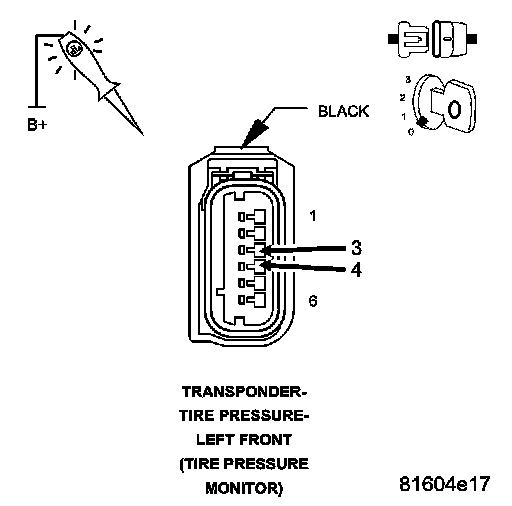

Turn the ignition on. Using a 12-volt test light connect to ground, check the (F500) Fused Run Relay Output circuit.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?
YES >>Go to 3
NO >>Repair the (F500) Fused Run Relay Output circuit for an open circuit or high resistance.
Perform TPM VERIFICATION TEST. Tire Pressure Monitor (TPM) Verification Test





3. (Z901) GROUND CIRCUIT(S) OPEN OR HIGH RESISTANCE
Using a 12-volt test light connect to 12 volts, check each of the (Z901) Ground circuit(s).

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

Is the test light illuminated and bright?
YES >>Go to 4
NO >>Repair the (Z901) Ground circuit(s) for an open circuit or high resistance.
Perform TPM VERIFICATION TEST. Tire Pressure Monitor (TPM) Verification Test

4. TIRE PRESSURE TRANSPONDER MODULE
Turn the ignition off.
Replace the appropriate Tire Pressure Transponder Module.
With the scan tool, clear DTC's in the Wireless Control Module (SKREEM).
Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.
With the scan tool, select View DTC's in the Wireless Control Module (SKREEM).
Does the DTC reset or is the status Active for this DTC?
YES >>Go to 5
NO >>Test Complete.

5. WIRELESS CONTROL MODULE (SKREEM)
View repair.
Repair
Replace the Wireless Control Module (SKREEM).
Perform TPM VERIFICATION TEST. Tire Pressure Monitor (TPM) Verification Test

6. INTERMITTENT TIRE PRESSURE TRANSPONDER MODULE DTC
The conditions necessary to set this DTC are not present at this time.
Refer to any Technical Service Bulletins that may apply to this condition.
With the scan tool, clear DTC's in the Wireless Control Module (SKREEM).
Test Drive the vehicle for a minimum of 10 minutes with vehicle speed greater than 15 m.p.h.
With the scan tool, select View DTC's in the Wireless Control Module (SKREEM).
Does the DTC reset or is the status Active for this DTC?
YES >>Return to the first step of this test and perform the diagnostic procedure.
NO >>Test complete.
