Crossfire SRT-6 V6-3.2L SC VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft Motion Sensor
Antitheft Motion Sensor

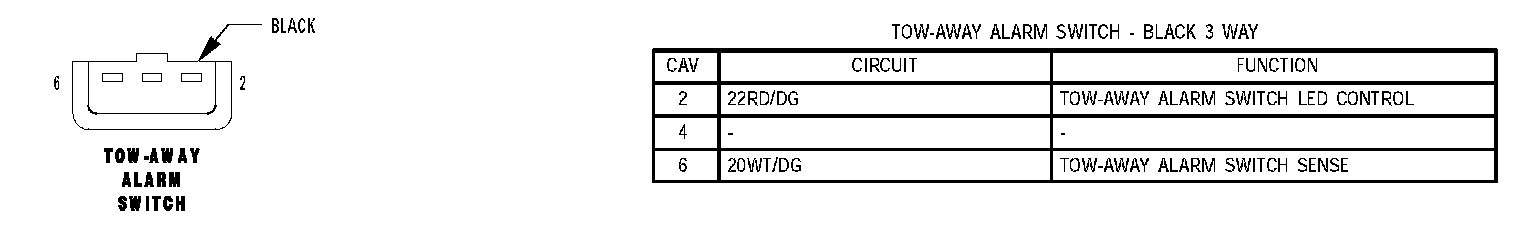

Tow-Away Alarm Switch:
