Body Control Module
Body Control Module

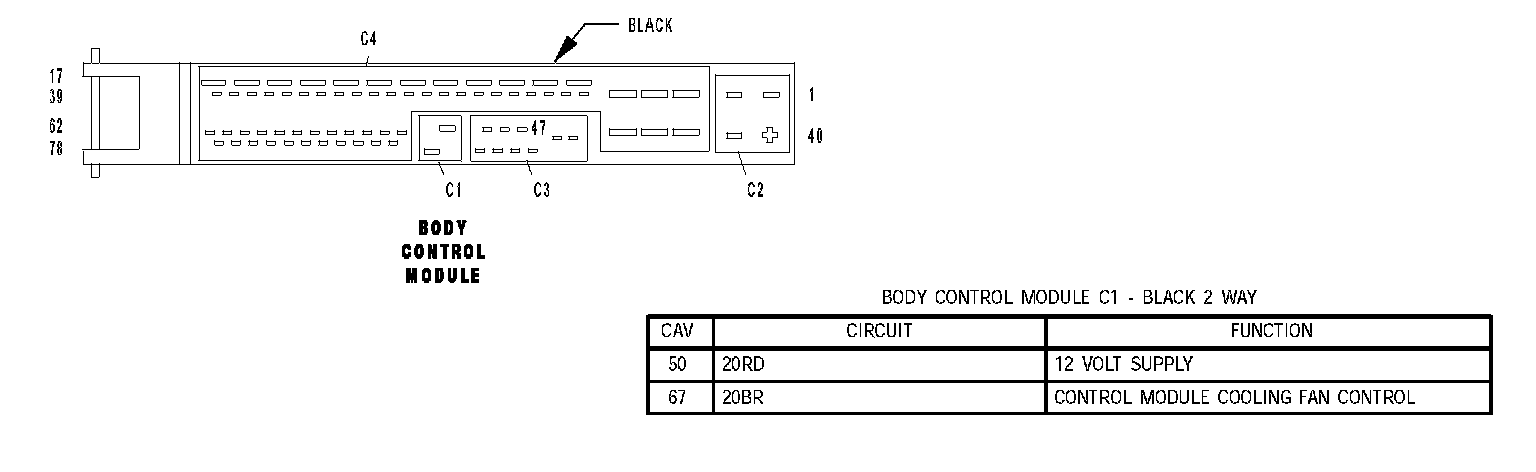

Body Control Module C1:

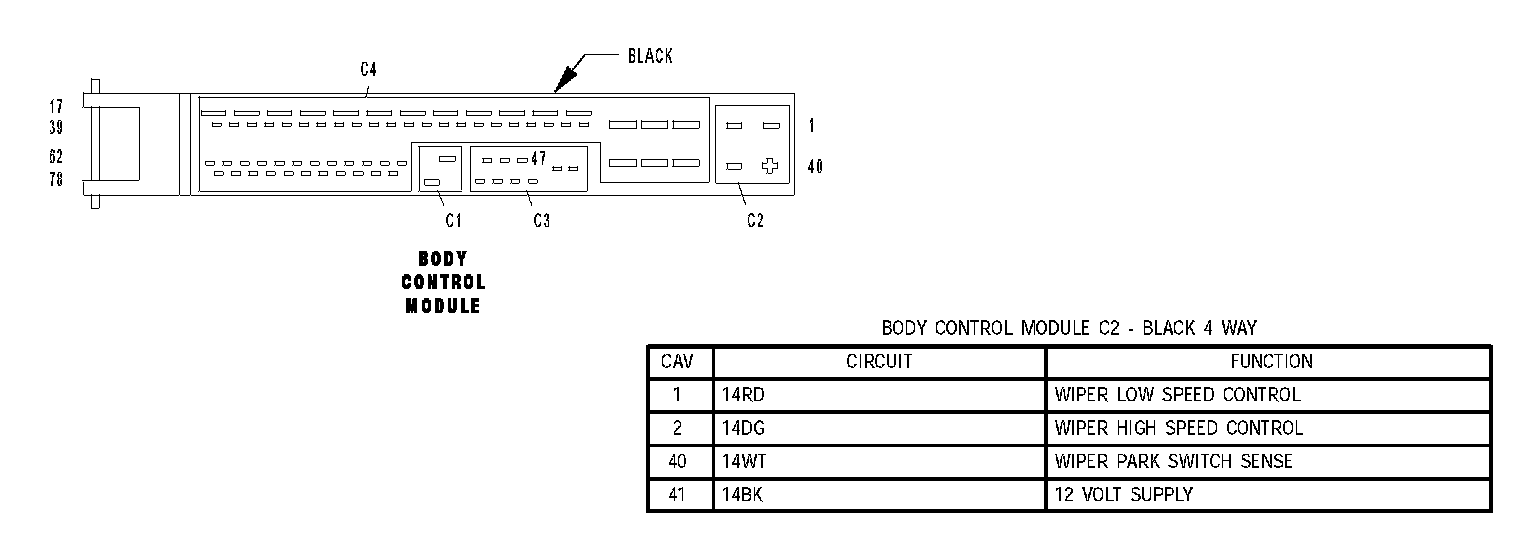

Body Control Module C2:

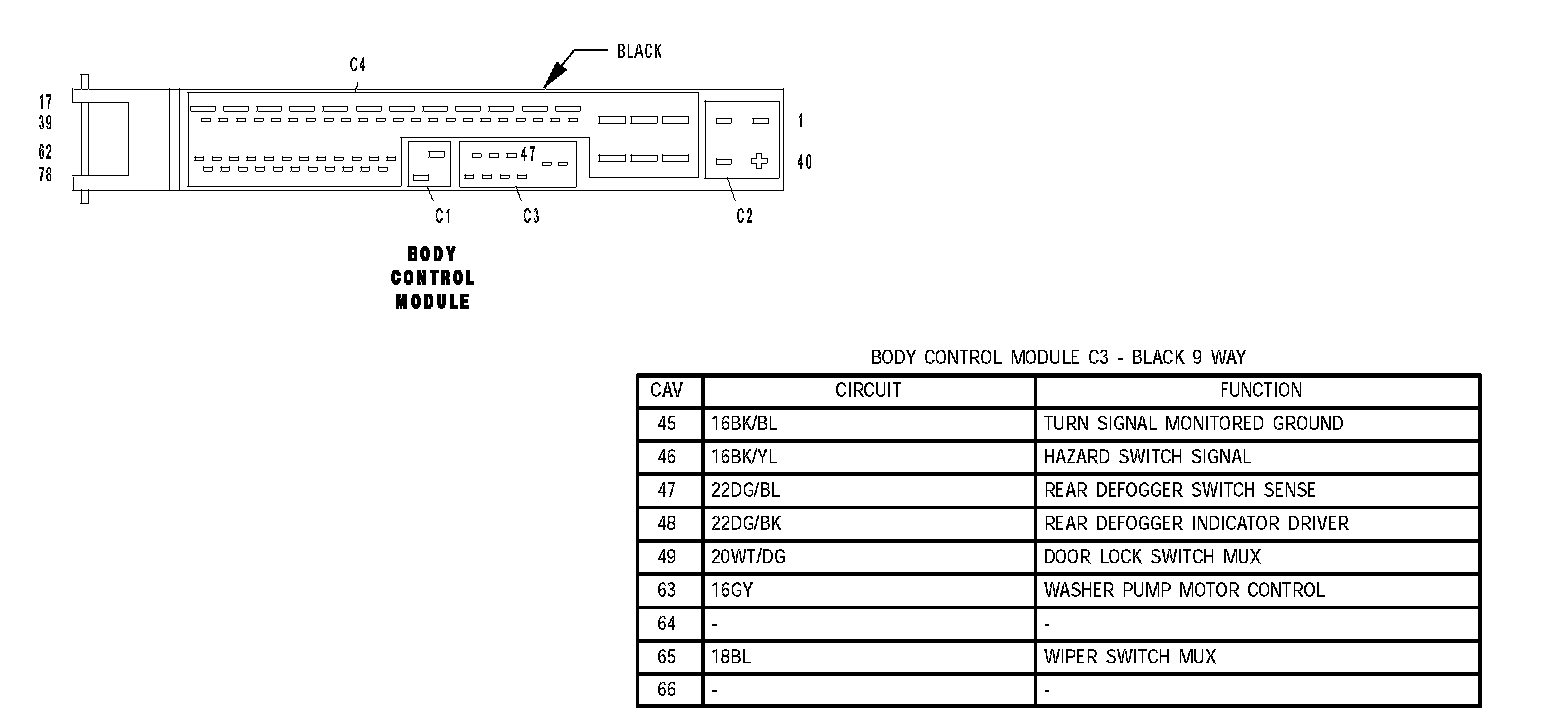

Body Control Module C3:

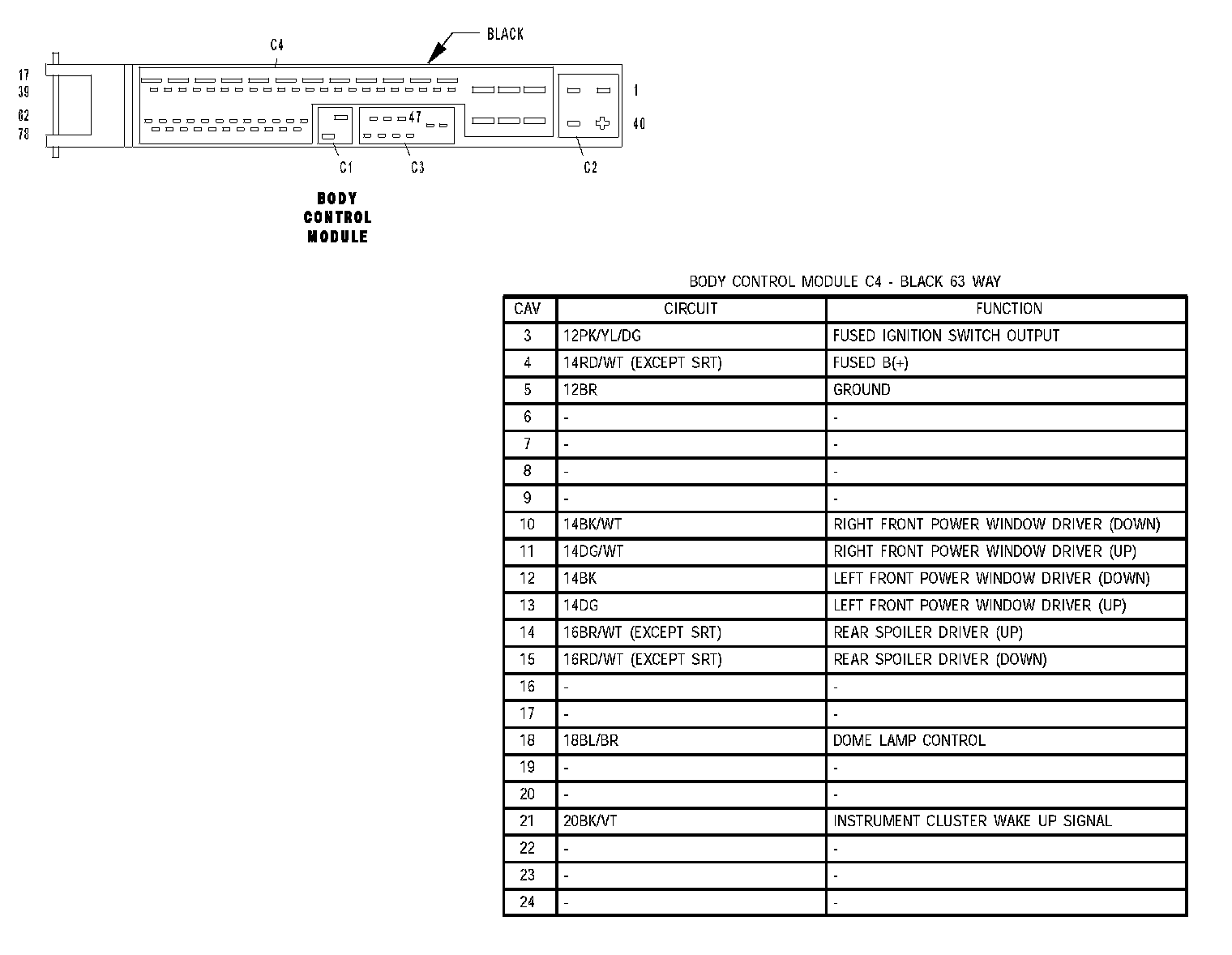

Body Control Module C4 (Part 1):

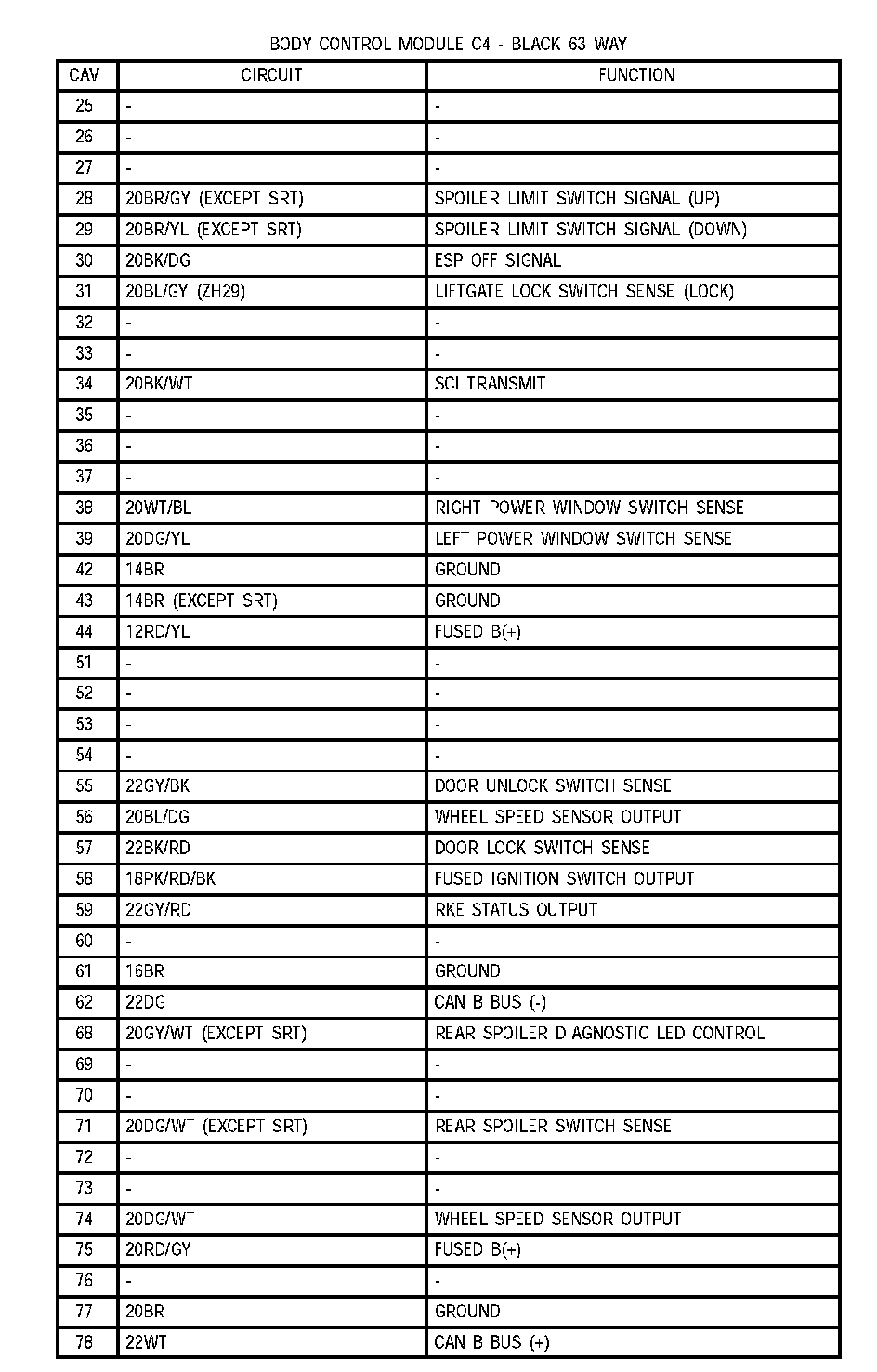

Body Control Module C4 (Part 2):
