Crossfire V6-3.2L VIN L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
Air Bag

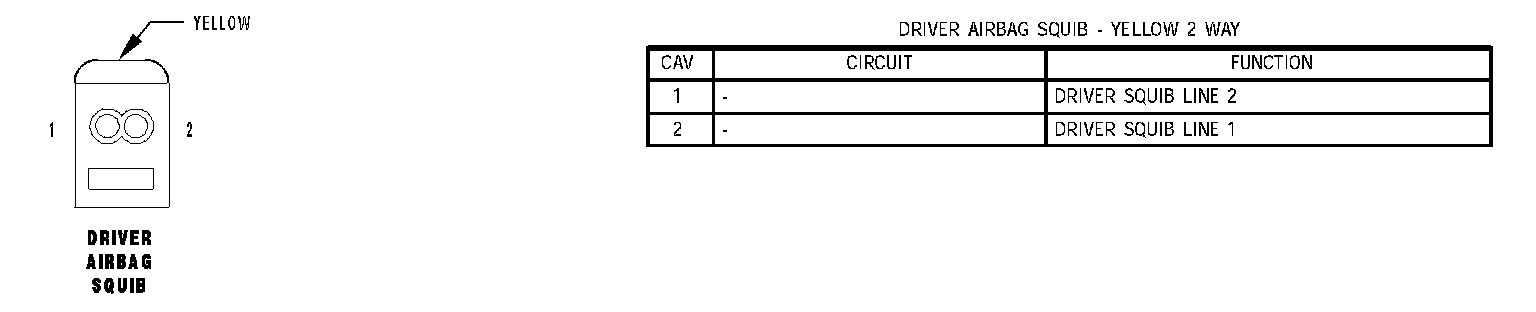

Driver Airbag Squib:

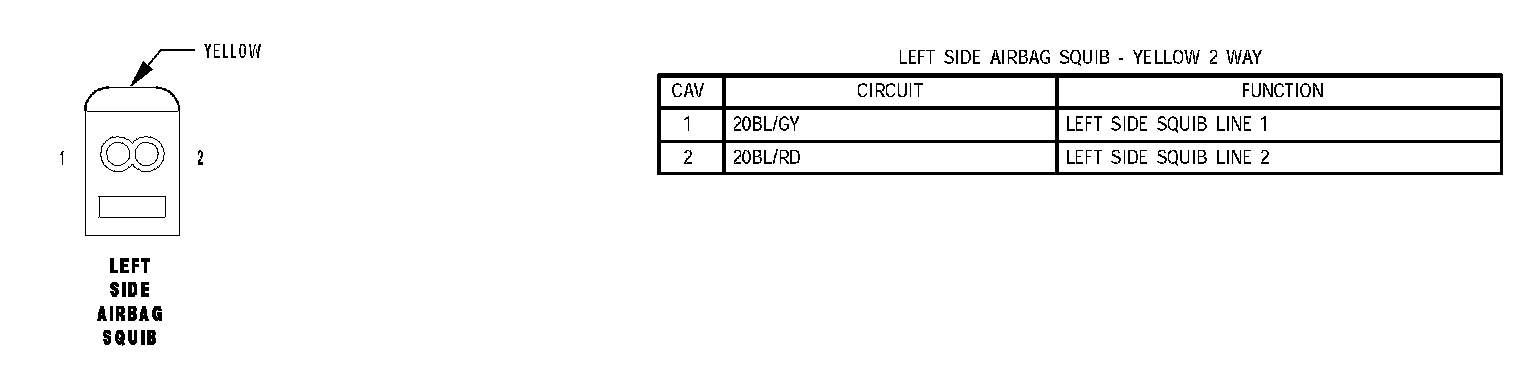

Left Side Airbag Squib:

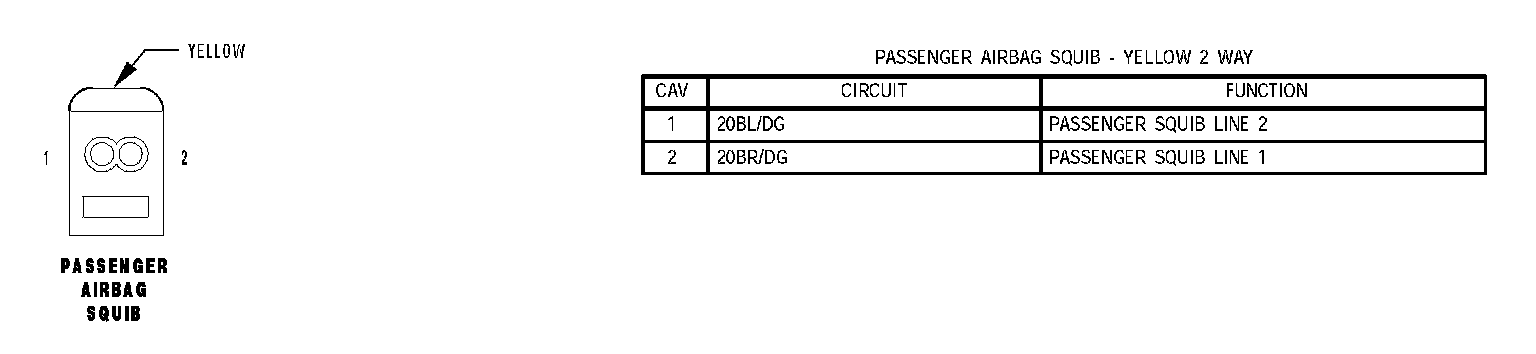

Passenger Airbag Squib:

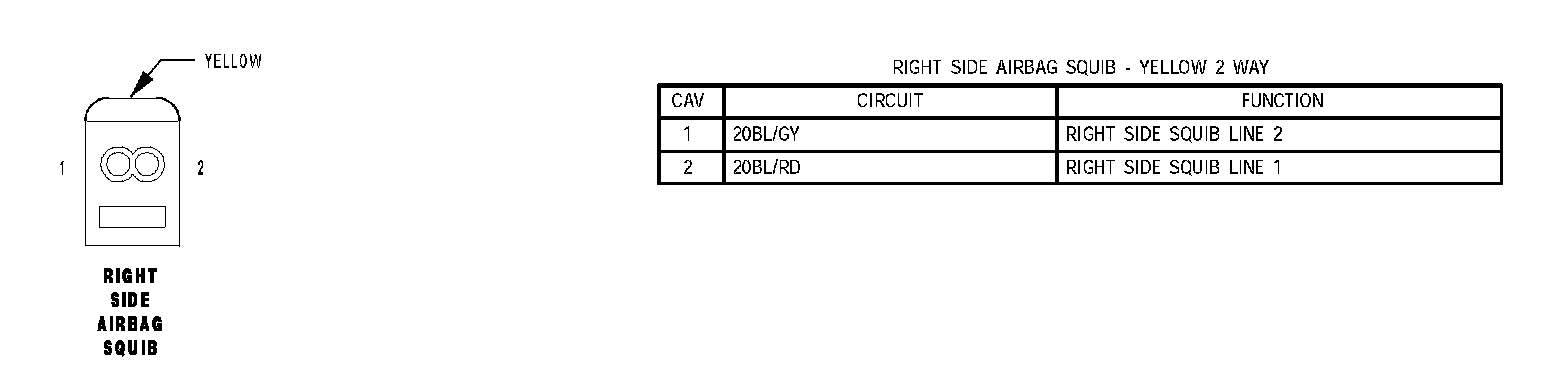

Right Side Airbag Squib:
