Maintenance Required Lamp/Indicator: Service and Repair

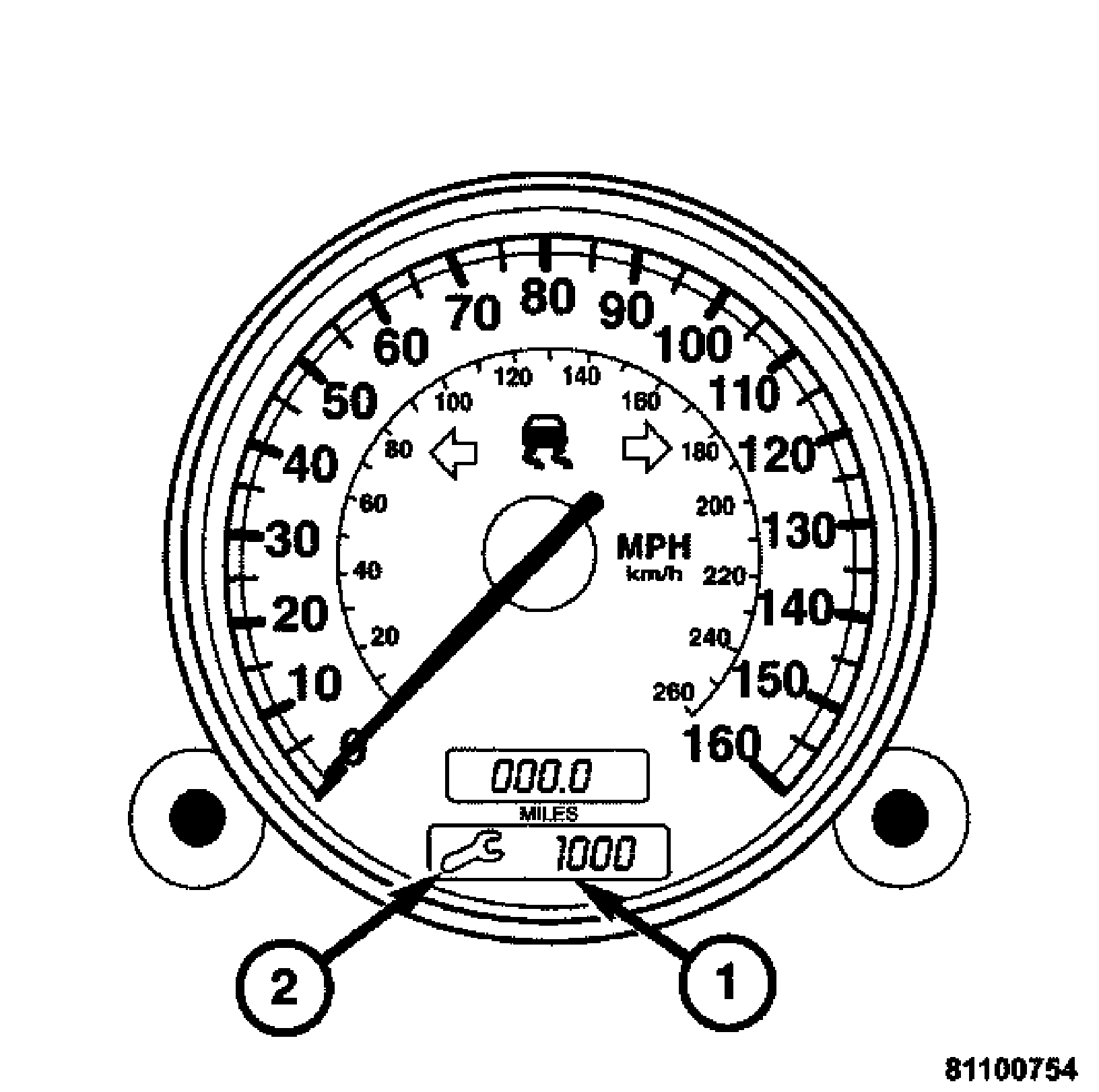

RESETTING THE FSS MAINTENANCE INDICATOR

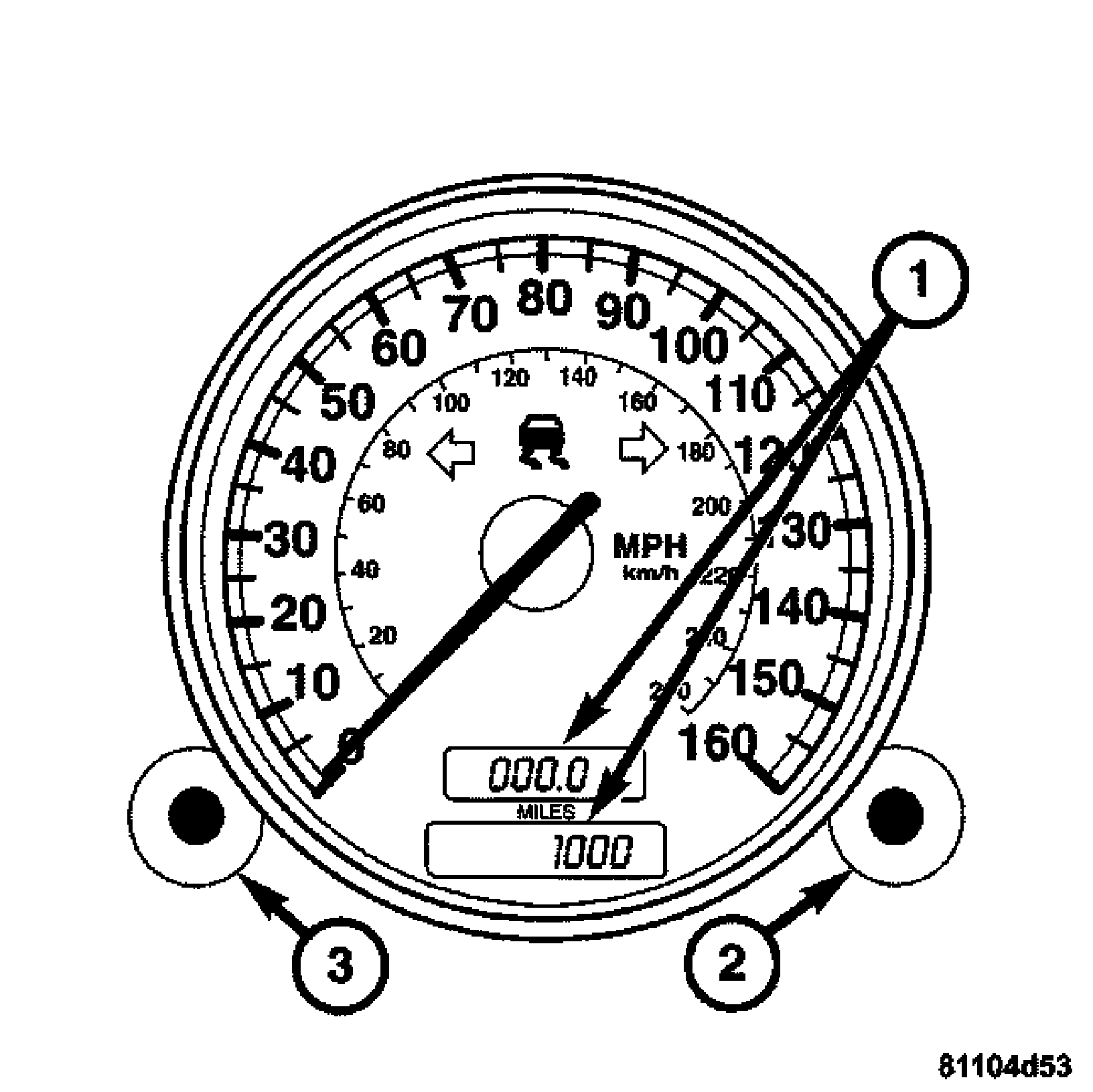

The FSS maintenance indicator can be reset to the total mileage (1) or total time in two ways.

1. Automatically when the odometer (1) is reset to 0 within the first 155 miles. (The FSS maintenance indicator is reset to the values set at the factory).

2. Manually by the driver.






Perform the following to manually reset the FSS maintenance indicator:

1. Hold the left control dial (3) depressed.

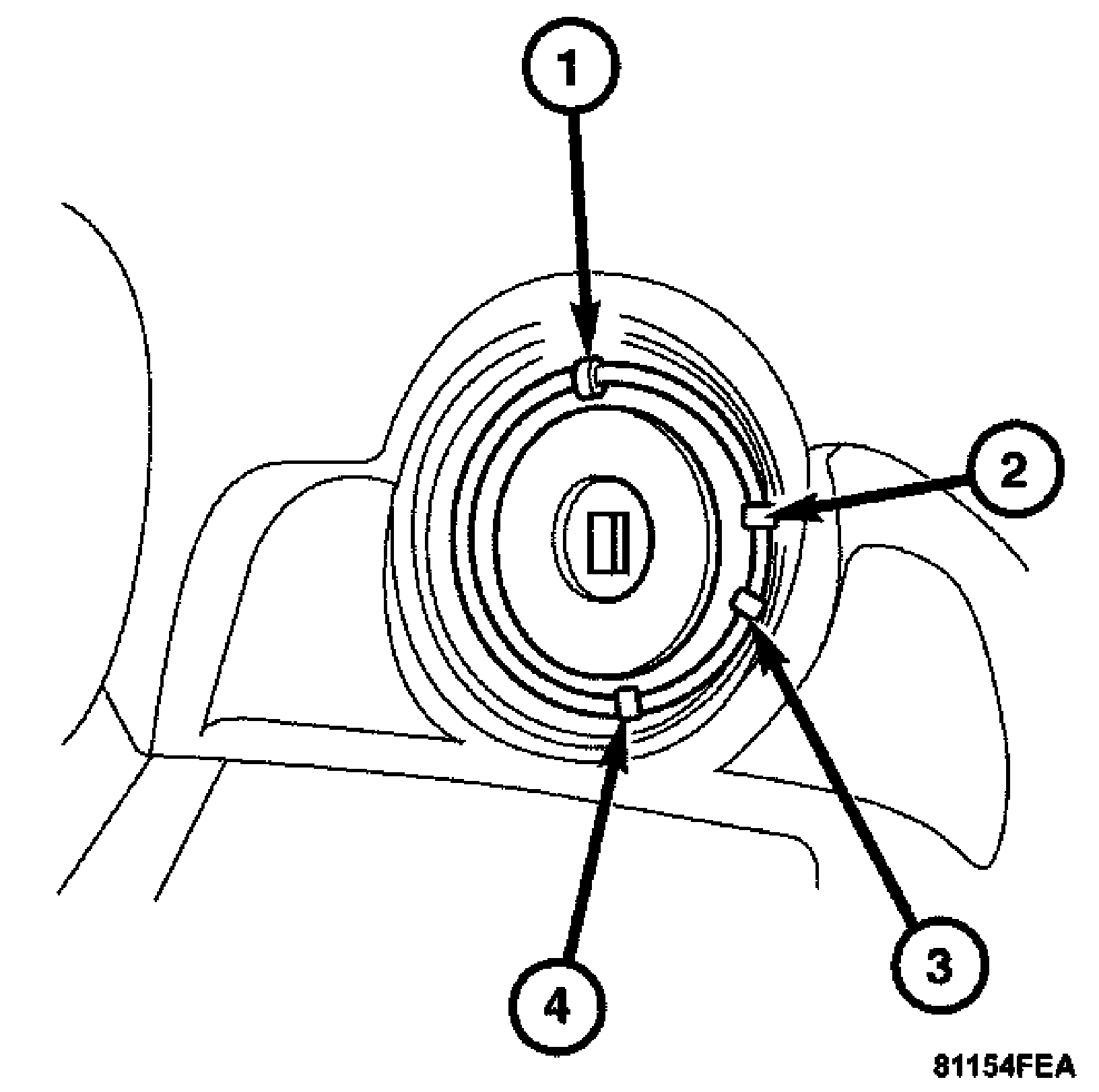

2. Simultaneously move the ignition switch to the RUN position (3).






3. Continue to hold the control dial (3) down for 10 seconds. After the audible tone, 7,500 miles (15,000 km) appears on the display. The remaining mileage (1) is displayed again.
