Home >> Chrysler >> 2006 >> Crossfire V6-3.2L VIN L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Radio, Stereo, and Compact Disc

Radio, Stereo, and Compact Disc

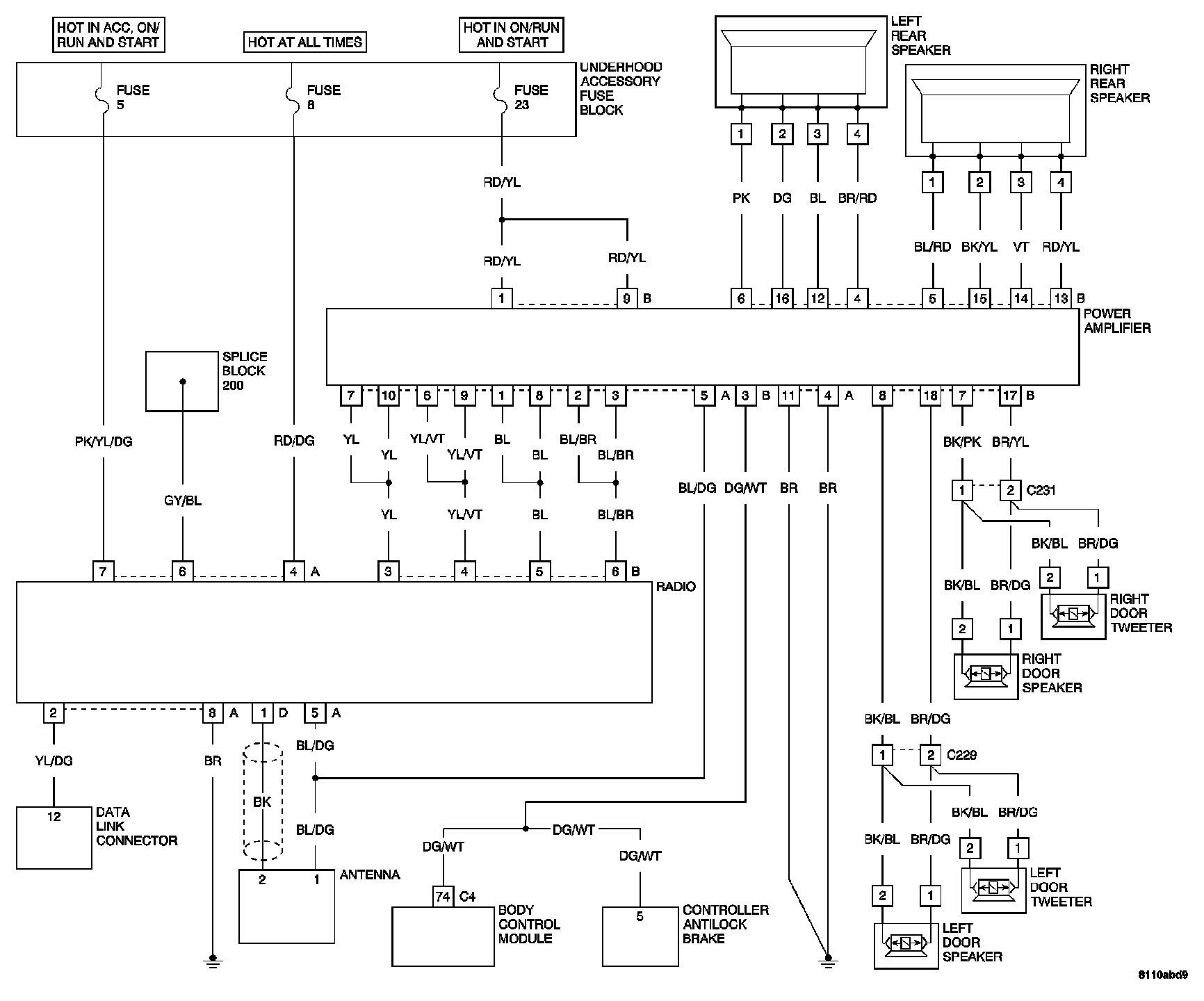

SCHEMATICS AND DIAGRAMS
