Removal and Replacement

WIPER BLADES

REMOVAL





1. Lift the wiper arm off the glass, and move the wiper arm to the service position.

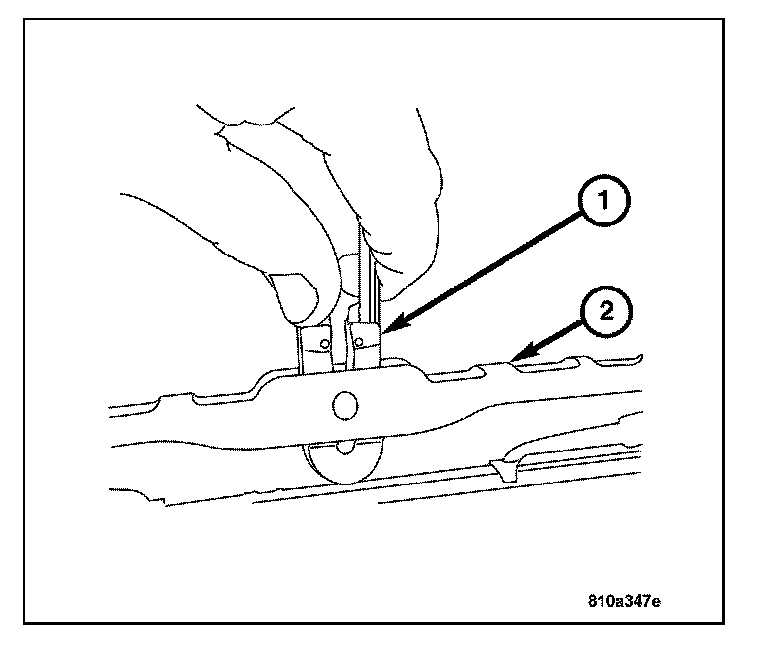

2. Squeeze the release tab (1) and slide the wiper blade (2) away from the wiper arm.

INSTALLATION

NOTE: The passenger and driver side wiper blades are different lengths. Be sure to install the shorter wiper blade with the spoiler on the driver's side of the vehicle.





1. Slide the wiper blade (2) onto the wiper arm until fully seated.
2. Gently return the wiper arm to the operational position.
