Hood Emblem

EMBLEM

REMOVAL

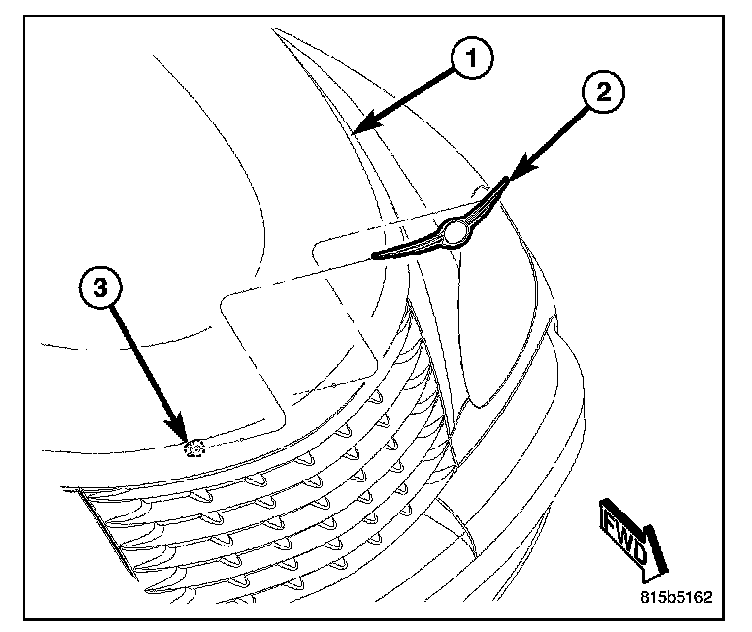

1. Open and support the hood (1).
2. Remove the two nuts (3) that secure the hood emblem (2) the hood and remove the emblem.

INSTALLATION




1. Position the hood emblem (2) into the two mounting holes located in the front of the hood (1).
2. Install the two nuts (3) that secure the hood emblem to the hood. Tighten the nuts securely.
