Flex Plate: Service and Repair

PLATE-FLEX

REMOVAL





1. Remove transaxle

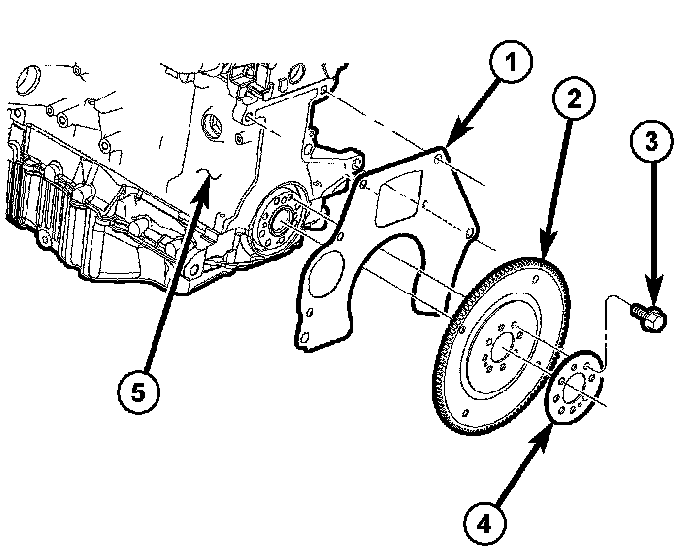

2. Remove flex plate retaining bolts (3).
3. Remove shim (4) and flex plate (2).

INSTALLATION





1. Install flex plate (2) and shim (4).
2. Install bolts (3) and torque bolts to 95 Nm (70 ft. lbs.).
3. Install transaxle.
