Removal

REMOVAL

1. Remove right halfshaft assembly.
2. Remove engine cradle crossmember
3. Remove propeller shaft assembly.

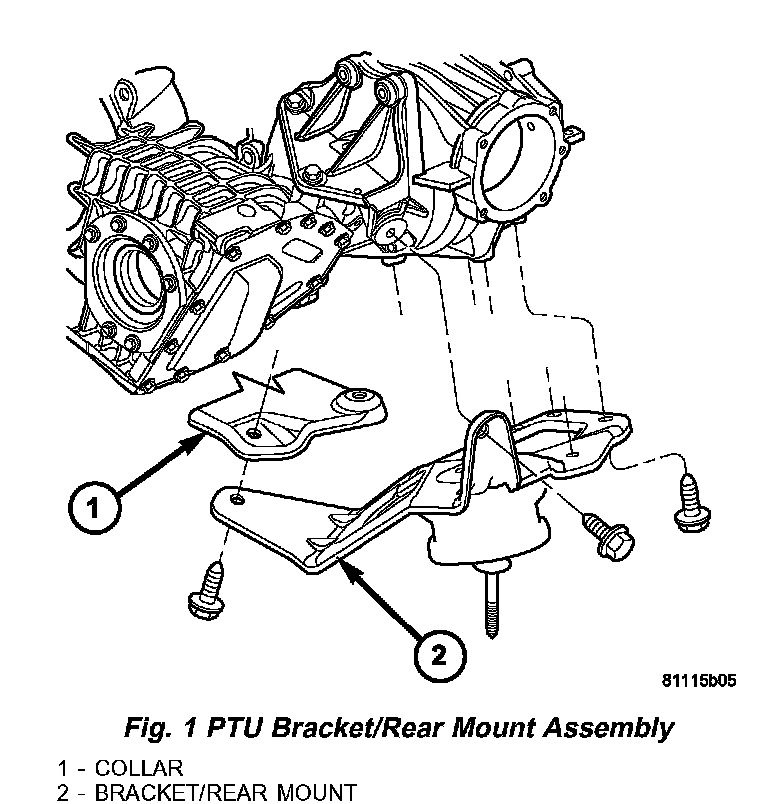

Fig. 1 PTU Bracket/Rear Mount Assembly:

4. Remove PTU/rear mount bracket (Fig. 1).

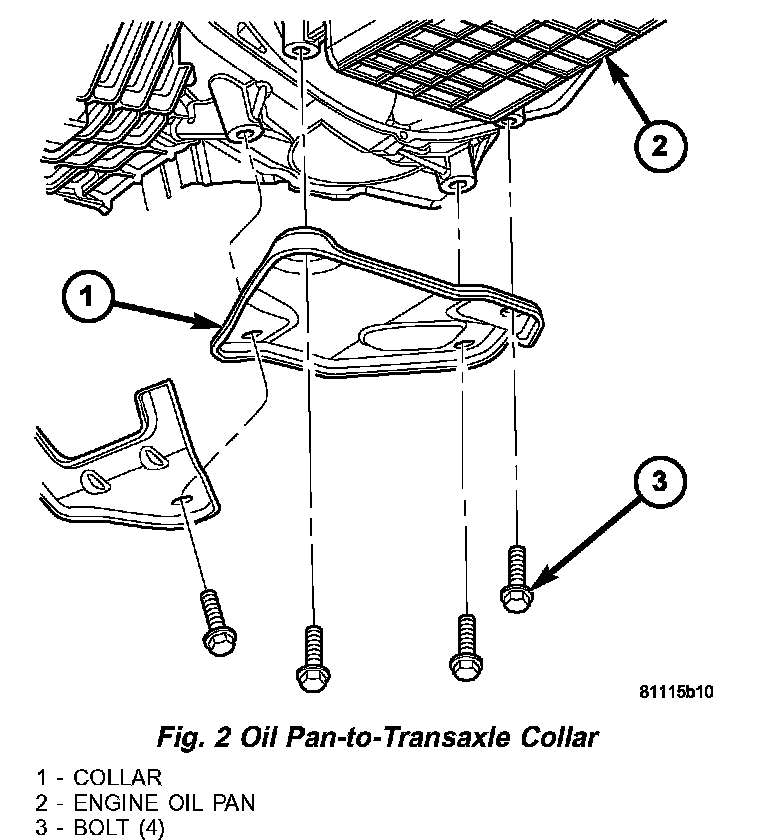

Fig. 2 Oil Pan-to-Transaxle Collar:

5. Remove oil pan-to-transaxle collar (Fig. 2).
6. Remove heat shield (Fig. 2).

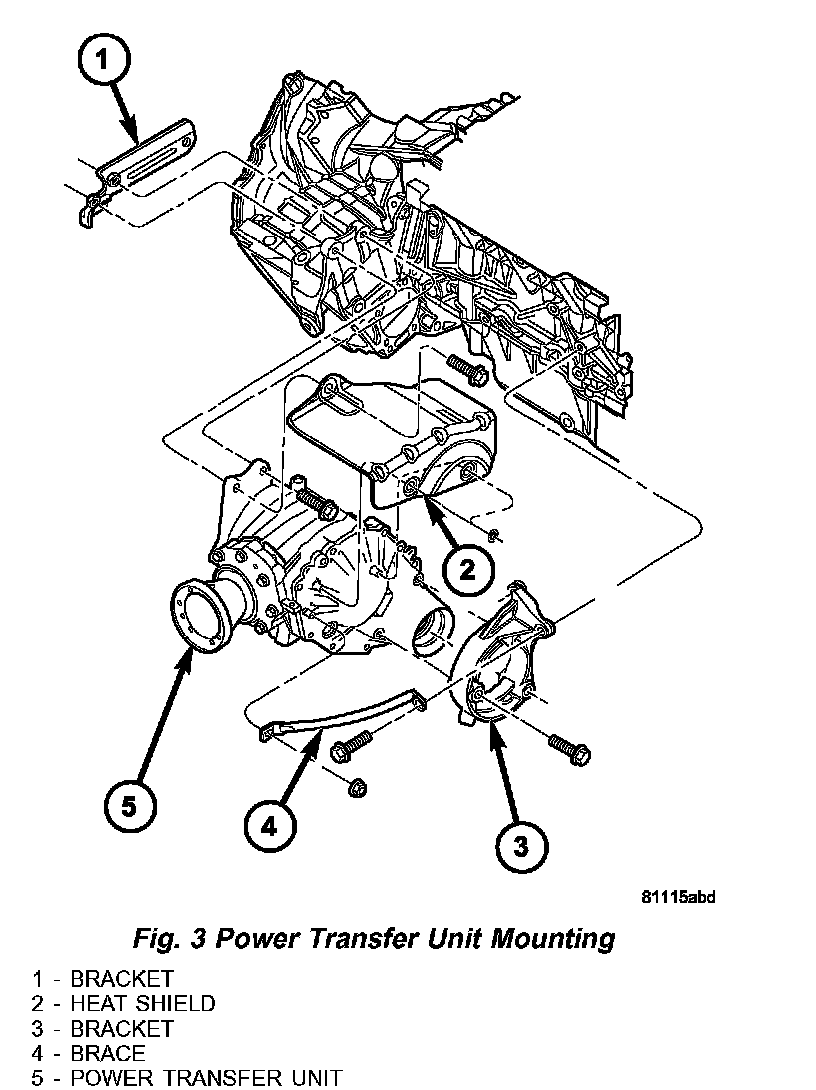

Fig. 3 Power Transfer Unit Mounting:

7. Remove bracket and brace (Fig. 3).
8. Remove PTU-to-transaxle upper bolts (Fig. 3).

Fig. 4 Power Transfer Unit Lower Bolts:

9. Remove PTU-to-bracket lower bolts (Fig. 4).
10. Remove PTU from vehicle.
