Sunroof Motor With Control Unit - Installation

INSTALLATION

WARNING: The Excessive Force Limitation (EFL) feature must be calibrated any time a sunroof motor/module is replaced with a new component. Failure to perform this procedure could result in vehicle damage and/or personal injury.

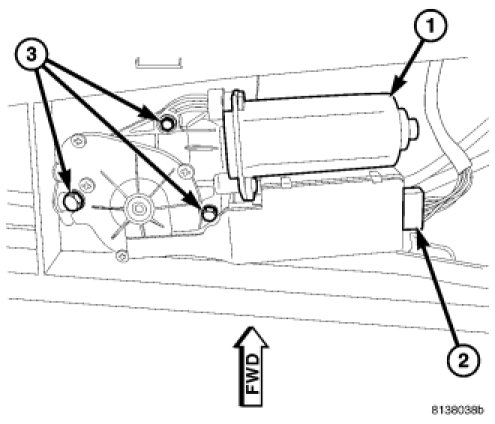

1. Position the power sunroof motor/module (1) in the vehicle.

2. Install the motor/module retaining screws (3). Tighten the screws to 4 Nm (35 in. lbs.).

3. Connect the motor/module electrical connector (2).

4. Connect the battery negative cable and move the sunroof through one open and close cycle to confirm proper system operation.

5. Install the vehicle headliner.

6. Perform the sunroof position calibration.

7. Perform the Excessive Force Limitation (EFL) calibration.

8. Verify proper operation of the power sunroof system.
