Rain Sensor
Component ID:
529
Component :
SENSOR-RAIN
Connector:
Name :
SENSOR-RAIN
Color :
BLACK
# of pins :
4
Qualifier :
(AUTO WIPERS)
Pin Description Circuit 1
FUSED ACCESSORY DELAY RELAY OUTPUT
F880 20BK/PK
2
GROUND
Z909 20BK/LG
3
CAN B BUS (+)
D55 20BK/WT
4
CAN B BUS (-)
D54 20BK
Component Location - 50

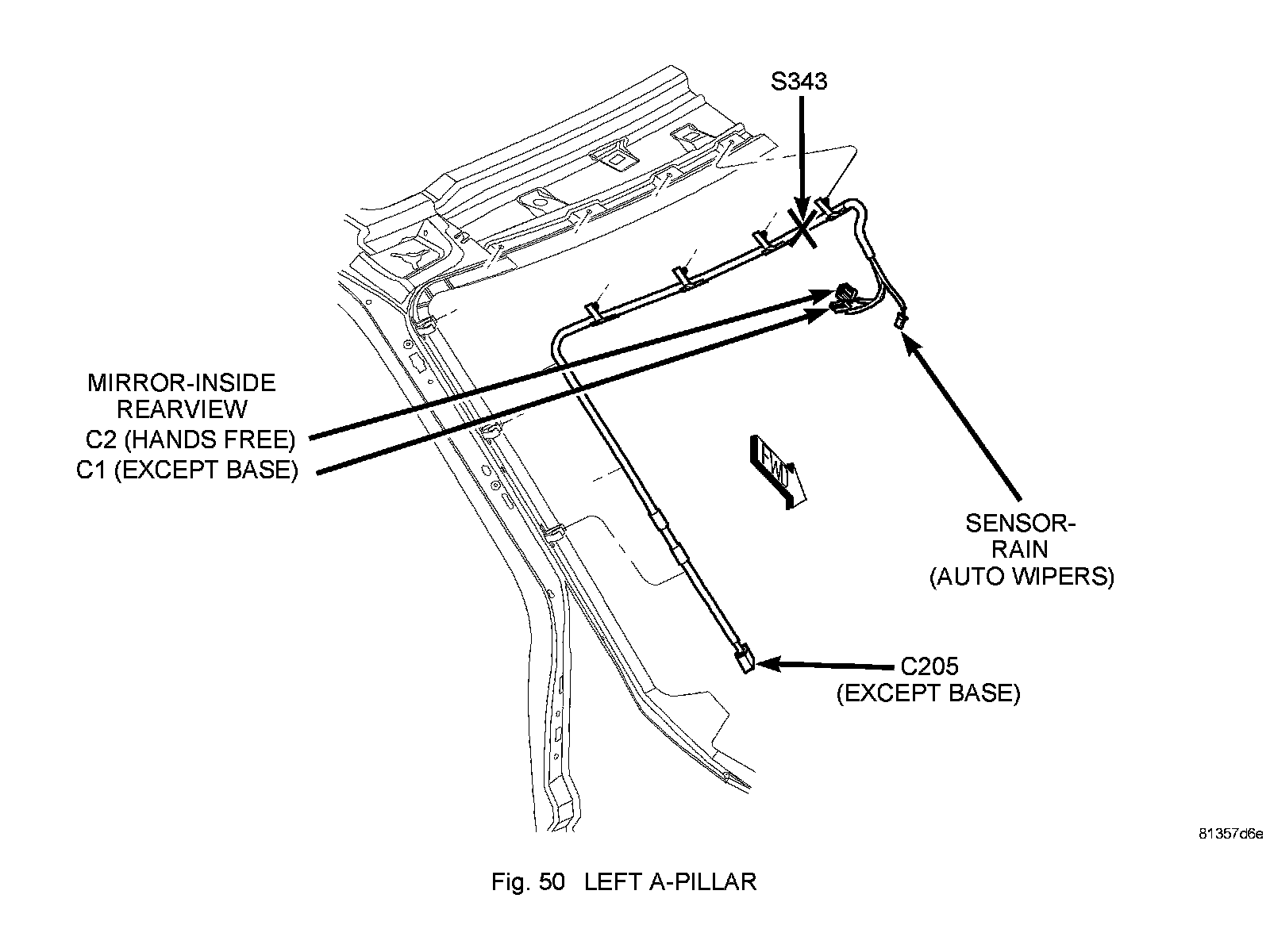

Fig. 50:
