Removal
3.5L 1.
Disconnect negative
battery cable.
2.

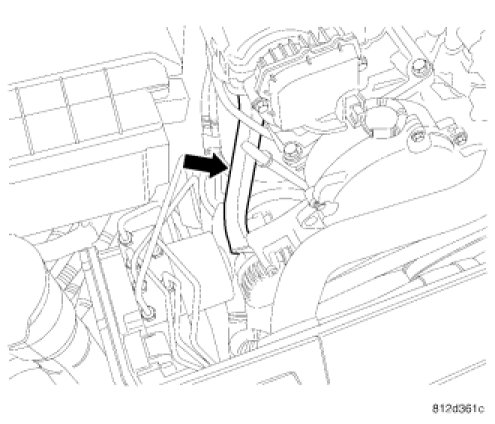

Remove generator drive belt.
3.
Remove bracket bolts.
4.
Remove upper mounting bolt.
5.
Raise and support vehicle.
6.
Remove middle splash pan.
7.
Disconnect generator field circuit plug.
8.
Remove B+ terminal nut and wire.
9.
Remove lower mounting bolts.
10.
Remove generator.
