Power Windows

B2218, B2219-DRIVER/PASSENGER DOOR MODULE INTERNAL - DDM/PDM

For a complete wiring diagram refer to Diagrams/Electrical.

- When Monitored:

At all times

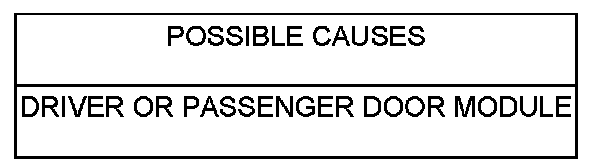

- Set Condition:

Whenever the module detects an EEPROM failure





Diagnostic Test

1.Replace the Door Module

NOTE: Anytime this code is logged, the module must be replaced.

Repair

- Replace the appropriate Door Module.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
