Speaker-Tweeter-Left Front

Component ID: 414

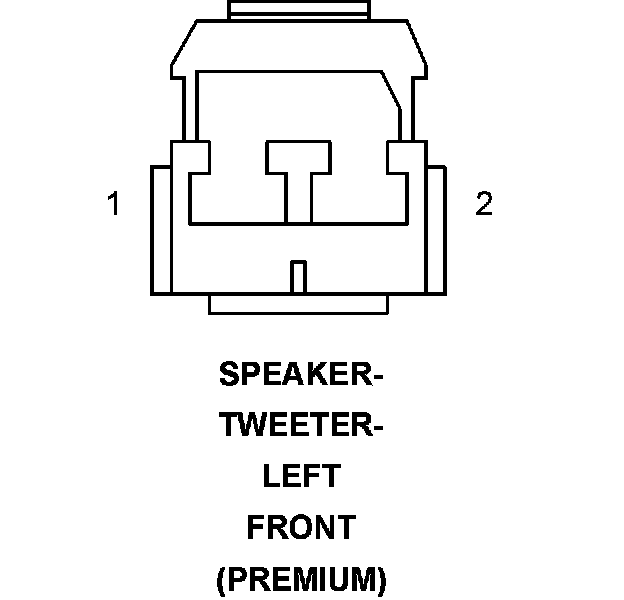

Component : SPEAKER-TWEETER-LEFT FRONT

Connector:
Name : SPEAKER-TWEETER-LEFT FRONT
Color :
# of pins : 2
Qualifier : (PREMIUM)

Pin Description Circuit
1 AMPLIFIED LEFT I/P SPEAKER (+) X209 20GY/OR
2 AMPLIFIED LEFT I/P SPEAKER (-) X299 20GY/YL

Component Location - 29
