Lamp-Park/Turn-Left Front




Component ID: 146

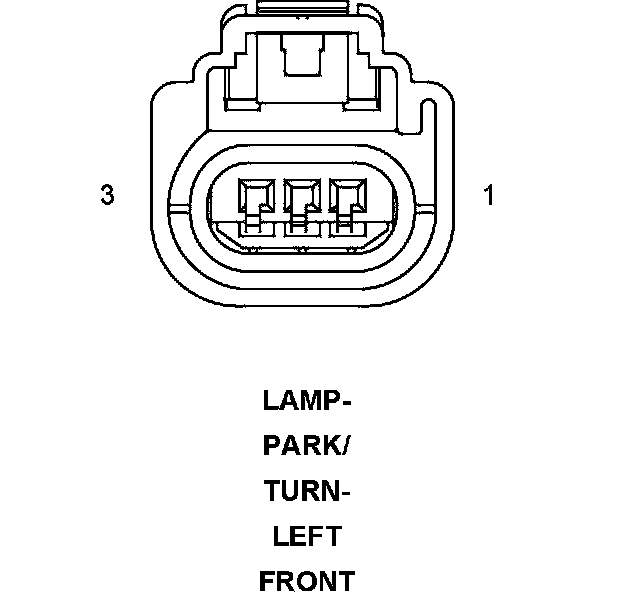

Component : LAMP-PARK/TURN-LEFT FRONT

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color :
# of pins : 3




Pin Description Circuit
1 GROUND Z377 20BK/BR
2 PARK LAMP RELAY OUTPUT L77 20PK/RD
3 LEFT TURN SIGNAL L61 18WT/LG

Component Location - 1
