Air Diverter Solenoid

Component ID: 7
Component : AIR PUMP SWITCHOVER SOLENOID

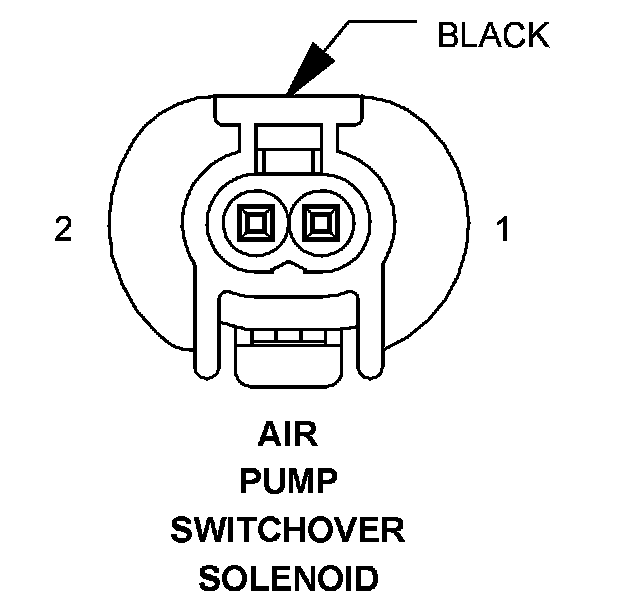

Connector:
Name : AIR PUMP SWITCHOVER SOLENOID
Color : BLACK
# of pins : 2




Pin Description Circuit
1 AIR PUMP SWITCHOVER SOLENOID CONTROL 20GY/BR
2 FUSED ENGINE CONTROL RELAY OUTPUT 20RD/DG

Component Location - 8
