Switch-Seat Belt-Driver

Component ID: 387
Component : SWITCH-SEAT BELT-DRIVER

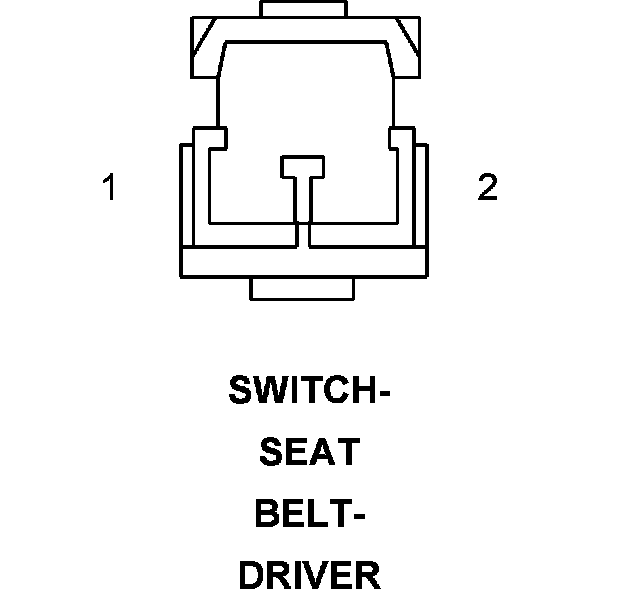

Connector:
Name : SWITCH-SEAT BELT-DRIVER
Color :
# of pins : 2




Pin Description Circuit
1 DRIVER SEAT BELT SWITCH SENSE R57 20LG/GY
2 GROUND Z908 20BK

Component Location - 49




Component Location - 55




Component Location - 50
