Blade-Rear Wiper
>>
Removal
Removal
REMOVAL
1.
Lift
wiper arm
from the glass.
2.

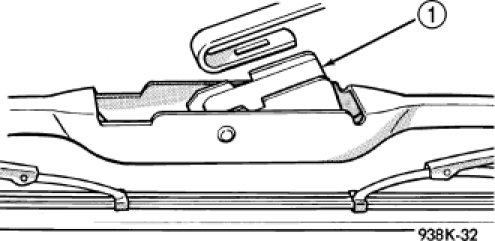

Remove blade assembly from arm by pushing release tab under arm tip and slide blade towards pivot.
3.
Gently place
wiper arm
tip on glass surface.
