Mirror-Outside Rearview-Passenger




Component ID: 180
Component : MIRROR-OUTSIDE REARVIEW-PASSENGER

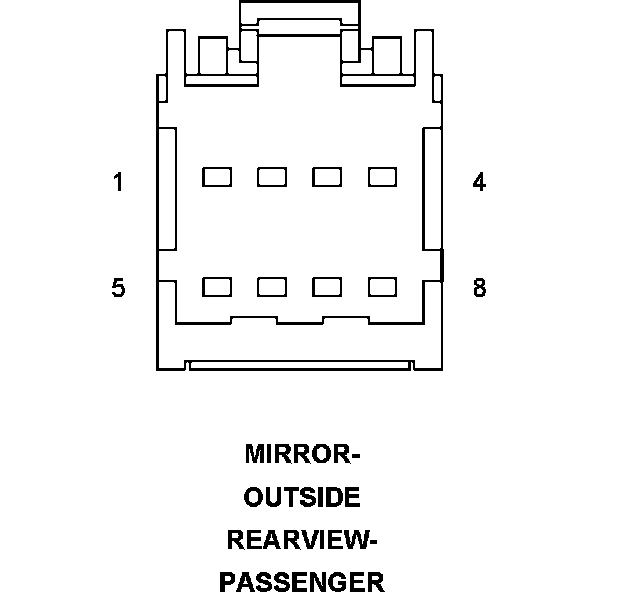

Connector:
Name : MIRROR-OUTSIDE REARVIEW-PASSENGER
Color :
# of pins : 8




Pin Description Circuit
1 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
2 MIRROR COMMON DRIVER P76 20LG
3 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
4 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
5 GROUND Z907 20BK
6 - -
7 MIRROR-POWER FOLDING/UNFOLDING P699 20LG/DG
8 FOLDING MIRROR RETURN P110 20LG/WT

Component Location - 59




Component Location - 60
