Drink Holders
Component ID:
16

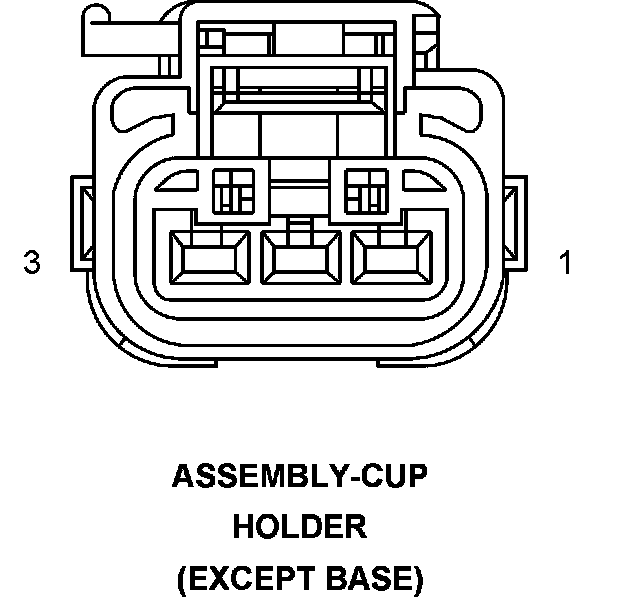

Component :
ASSEMBLY-CUP HOLDER
Connector:
Name :
ASSEMBLY-CUP HOLDER
Color :
# of pins :
3
Qualifier :
(EXCEPT BASE)
Pin Description Circuit 1
FUSED IGNITION SWITCH OUTPUT (RUN)
F929 20PK/DB
2
PANEL LAMPS DRIVER
E12 20OR/GY
3
GROUND
Z907 20BK
Component Location - 52
Fig. 52:
