Transponder-Tire Pressure-Left Front




Component ID: 420

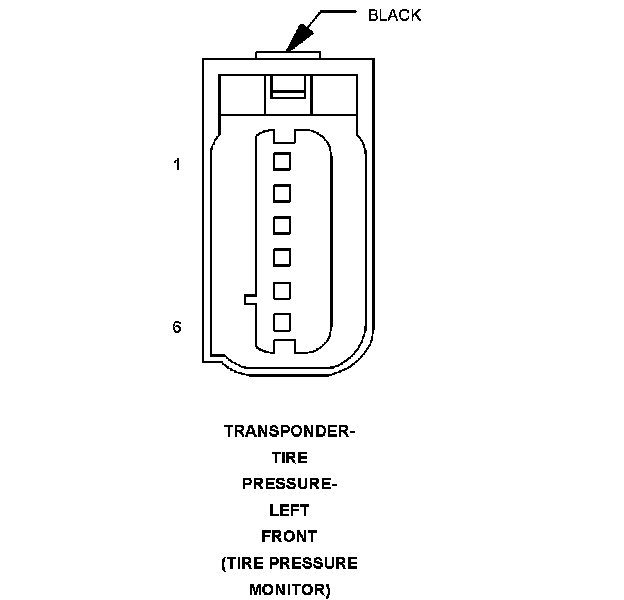

Component : TRANSPONDER-TIRE PRESSURE-LEFT FRONT

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT FRONT
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 GROUND Z902 20BK
4 GROUND Z902 20BK
5 - -
6 - -

Component Location - 11

Fig. 11:
