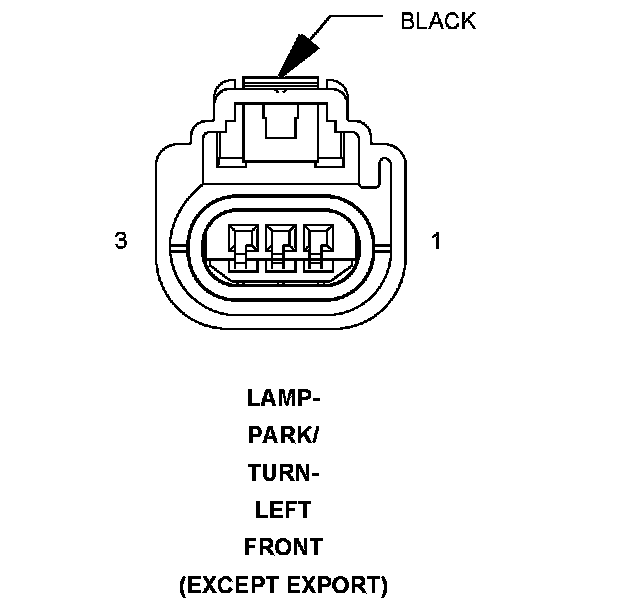

Lamp-Park/Turn-Left Front
Component ID:
156
Component :
LAMP-PARK/TURN-LEFT FRONT
Connector:
Name :
LAMP-PARK/TURN-LEFT FRONT
Color :
BLACK
# of pins :
3
Qualifier :
(EXCEPT EXPORT)
Pin Description Circuit 1
GROUND
Z901 20BK
2
HEADLAMP SWITCH OUTPUT
L7 20WT/YL
3
LEFT TURN SIGNAL CONTROL
L61 20WT/LG
Component Location - 4
