C111

Component ID: 35
Component : C111

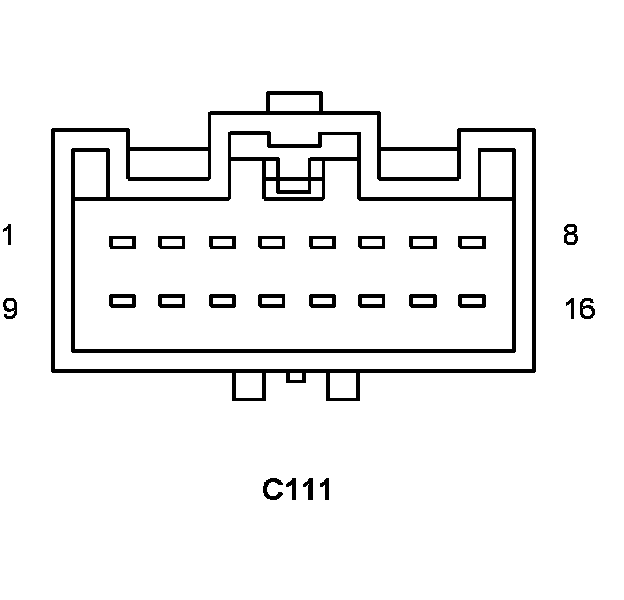

Connector:
Name : C111
Color :
# of pins : 16
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A418 20RD/LG
2 CLUTCH UPSTOP SIGNAL T26 20DG/OR
3 CAN C BUS (-) D64 20WT/LB
4 5 VOLT SUPPLY K852 20BR/VT
4 5 VOLT SUPPLY F855 20PK/YL
5 5 VOLT SUPPLY K854 20VT/BR
5 5 VOLT SUPPLY F856 20YL/PK
6 SIREN SIGNAL CONTROL D96 20WT/LB
7 CLUTCH INTERLOCK SIGNAL T41 20YL/DB
7 CLUTCH INTERLOCK SIGNAL T141 20YL/OR
8 FUSED B(+) A950 20RD/VT
9 - -
10 - -
11 CAN C BUS (+) D65 20WT/LG
12 - -
13 REAR FOG LAMP CONTROL OUTPUT L239 20WT/DG
14 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
15 - -
16 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT

Component Location - 53

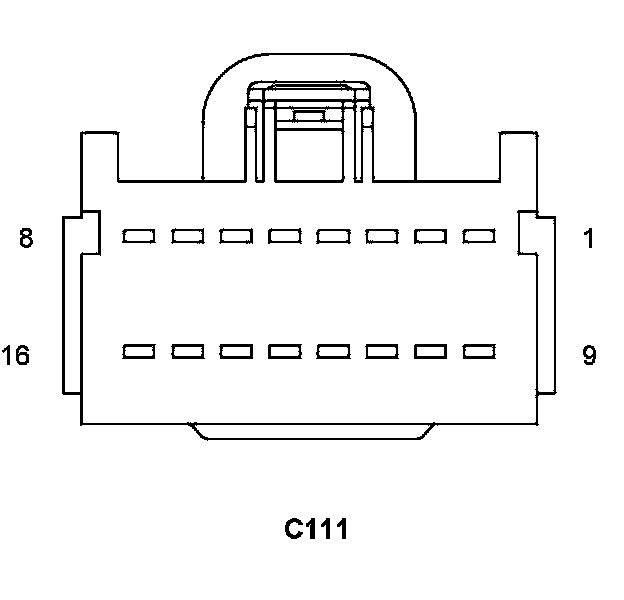

Connector:
Name : C111
Color :
# of pins : 16
Gender : MALE




Pin Description Circuit
1 FUSED B(+) (I.O.D.) A418 20RD/LG
2 CLUTCH UPSTOP SIGNAL T26 20DG/OR
3 CAN C BUS (-) D64 20WT/LB
4 5 VOLT SUPPLY F855 20PK/YL
5 5 VOLT SUPPLY F856 20YL/PK
6 SIREN SIGNAL CONTROL D96 20WT/LB
7 CLUTCH INTERLOCK SIGNAL T41 20YL/DB
7 CLUTCH INTERLOCK SIGNAL T141 20YL/OR
8 FUSED B(+) A950 20RD/VT
9 - -
10 - -
11 CAN C BUS (+) D65 20WT/LG
12 - -
13 REAR FOG LAMP CONTROL OUTPUT L239 20WT/DG
14 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
15 - -
16 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT

Component Location - 53
