Canada - Campaign - Remote Keyless Entry Transmitters

Bulletin
H30

Issue Date
2009-01-20

IMPORTANT

DEALER SERVICE INSTRUCTIONS

CUSTOMER SATISFACTION NOTIFICATION H30 REMOTE KEYLESS ENTRY TRANSMITTERS

Those vehicles that have already had this repair performed, as determined by our warranty records, have been excluded from this notification.

MODELS:
2008 (LX) Chrysler 300, Dodge Magnum and Charger
2008 (RT) Dodge Grand Caravan and Chrysler Town & Country
2008 (WK) Jeep Grand Cherokee
2008 (XK) Jeep Commander

NOTE:
This notification applies only to the above vehicles built through October 30, 2008 (MDH 103000).

^ The Remote Keyless Entry (RKE) transmitters on about 18,500 of the above vehicles may exhibit poor retention to the valet key and could inadvertently separate from each other.

^ To correct this condition, both RKE transmitters must be replaced and the new transmitters must be programmed.

Recall and Parts Information
Canadian Recall Service Instructions and Part Numbers can be different. Always use the attached Canadian Recall Notification for service instructions and parts information.

This Canadian Recall Notification can also be found in DealerCONNECT - See below:

DealerCONNECT > Service > In the Repair section TechCONNECT > 30 - CANADIAN RECALLS

The V.I.N. range for vehicles involved in this campaign is as follows:

1D8HN44H38B102258 - 1D4HN44H18B122185
1J8HR58228C100552 - 1J8HG48KX8C162300
2B3LA53H48H100197 - 2C3LK63H48H178260
2D8HN54P38R100072 - 2D8HN44H68R654290

DEALER VIN LISTS Located in DealerCONNECT - Global Recall System (GRS)

GRS has been developed to provide dealers with an up-to-date list of involved vehicles by recall number and by dealer code. Owners known to Chrysler are also listed. Involved vehicles will be removed from the GRS within several days of submitting repair claims.

To use the GRS in DealerCONNECT, you first need to click on the Service tab and then in the Repair section click on Global Recall System. Your dealer's VIN list for each Recall can be sorted by: Unsold Vehicles (at the time of Recall launch), Phone Number, City Name, Zip Code (Postal Code) or VIN.


























Dealer Information

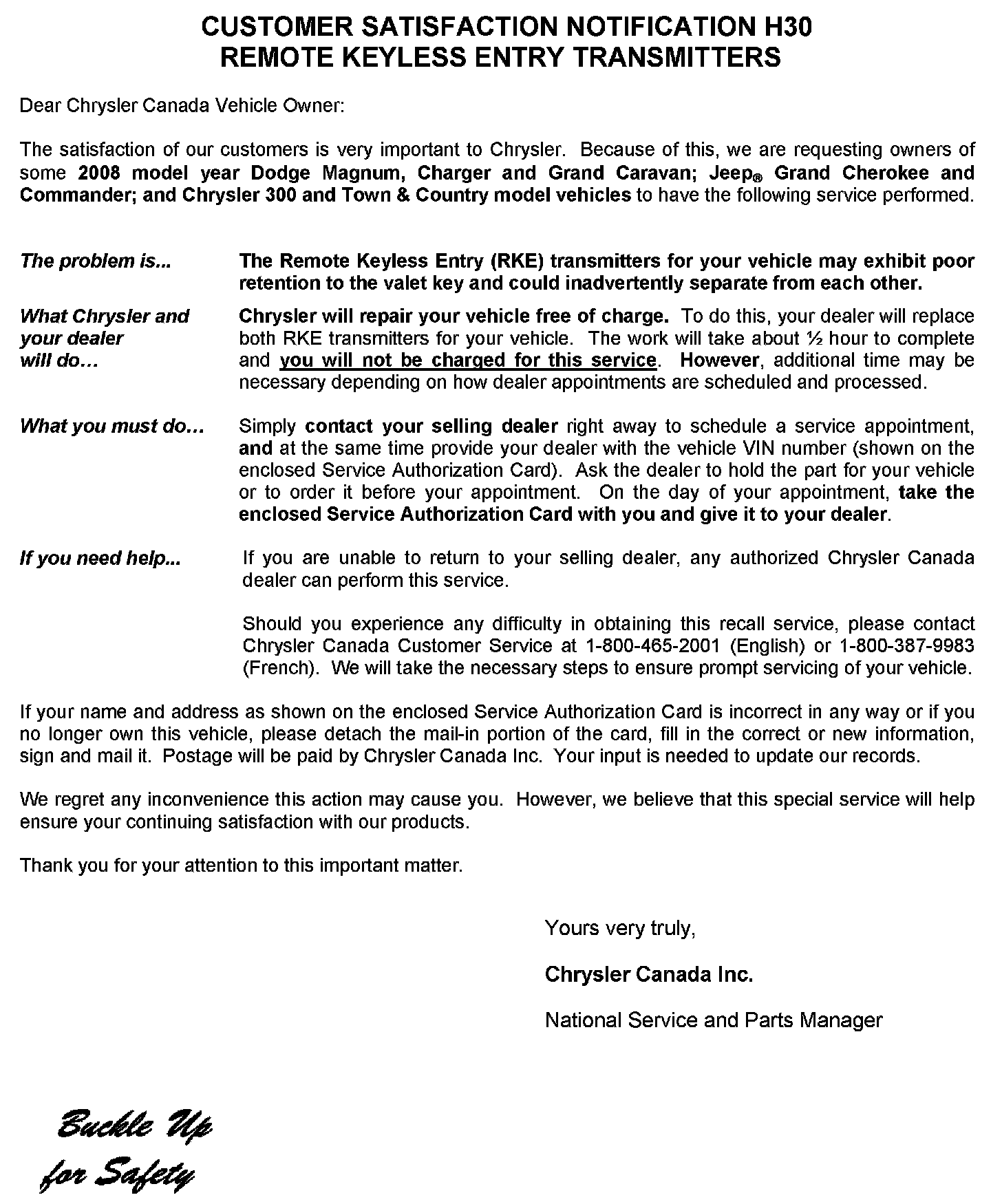

Owner Letter
