Switch-Heated Seat-Right

Component ID: 572
Component : SWITCH-HEATED SEAT-RIGHT

Connector:
Name : SWITCH-HEATED SEAT-RIGHT
Color : BLACK
# of pins : 8




Pin Circuit Description
1 F23 20RD/OR IGNITION RUN-START OUTPUT
2 Z909 20BK/LG GROUND
3 P366 20LG/LB RIGHT HEATED SEAT SWITCH SENSE
4 P84 20TN/VT RIGHT HEATED SEAT HIGH INDICATOR DRIVER
5 - -
6 P82 20TN/DG RIGHT HEATED SEAT LOW INDICATOR DRIVER
7 E12 20OR/GY PANEL LAMPS DRIVER
8 - -

Component Location - 42




Component Location - 36

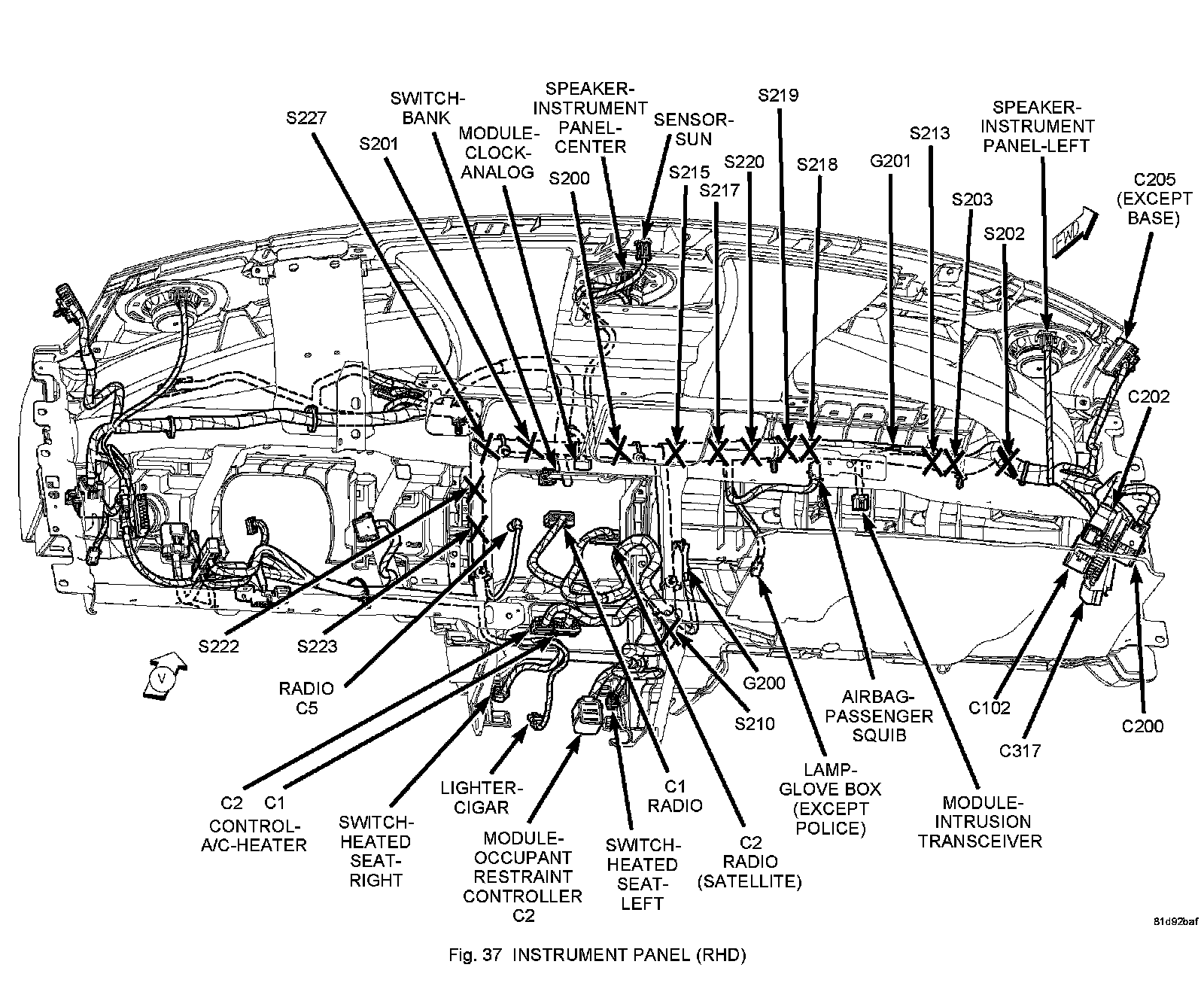

Component Location - 37




Component Location - 46
