Dome Lamp: Locations

Component ID: 182
Component : LAMP-DOME

Connector:
Name : LAMP-DOME
Color : BLACK
# of pins : 2
Qualifier : (POLICE)




Pin Circuit Description
1 A932 18RD FUSED B(+)
2 Z909 18BK/LG GROUND

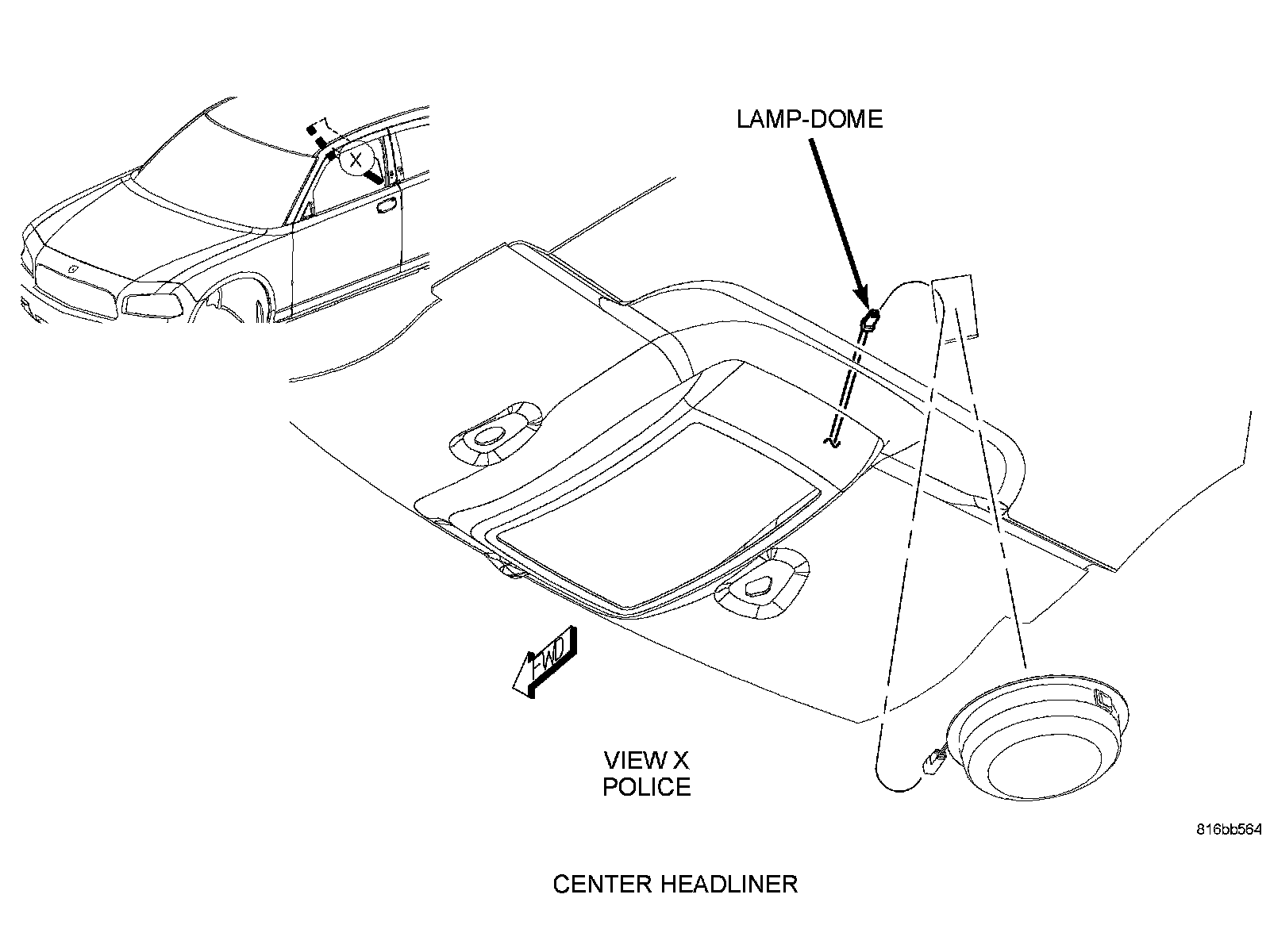

Component Location - 70
