Front Distribution

DESCRIPTION

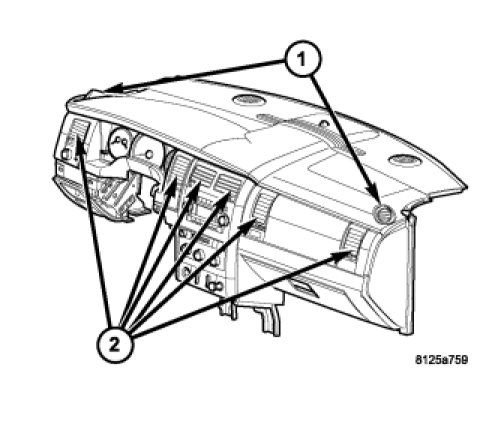

NOTE: Dodge model shown. Chrysler model similar.

There are two side window demister air outlets (1). One located on each end of the instrument panel top pad. The airflow from the side window demister air outlets is directed by fixed vanes in the demister outlet grilles and cannot be adjusted. The side window demister air outlets are serviceable from the instrument panel top pad.

There are six instrument panel air outlets (2). One air outlet is located near each end of the instrument panel facing the rear of the vehicle, one outlet is on each side of the instrument panel center bezel and two outlets are located within the center bezel. Each of the instrument panel air outlets contain a grille with movable vanes that are used to direct or shut off the flow of the conditioned air leaving the instrument panel outlets.

The driver side instrument panel air outlet is serviced with the instrument cluster bezel, the passenger side instrument panel air outlet is serviced with the passenger side trim panel and the two center air outlets are serviced with the center bezel.
