Fuel Gauge Sender

Component ID: 99

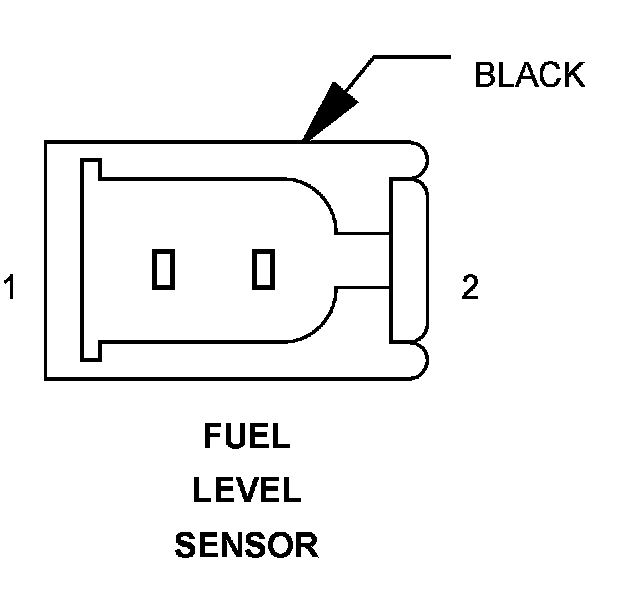

Component : FUEL LEVEL SENSOR

Connector:
Name : FUEL LEVEL SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR/GY FUEL LEVEL SENSOR RETURN
2 20BL/BK FUEL LEVEL SENSOR SIGNAL
