Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
SCHEMATICS AND DIAGRAMS

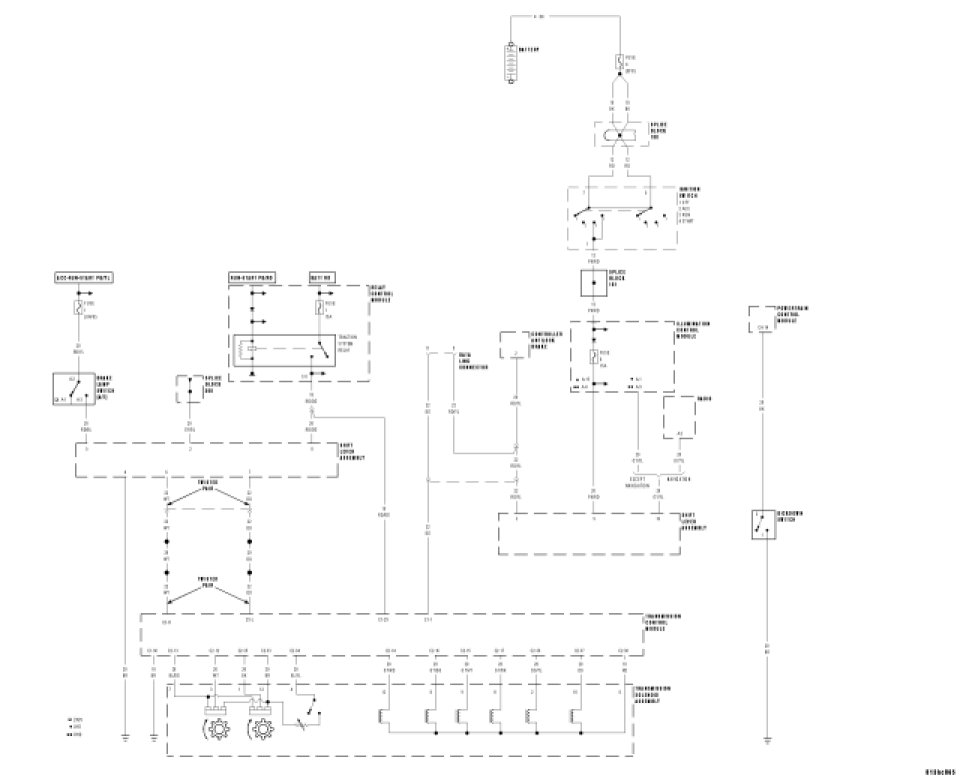

AUTOMATIC TRANSMISSION CIRCUIT DIAGRAM
