Installation

INSTALLATION

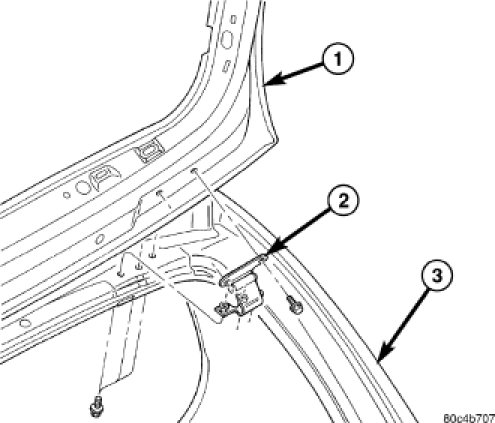

1. If necessary, paint the replacement liftgate hinge (2) prior to installation.
2. Position the liftgate hinge to the roof header (3) and install the retaining bolts. Tighten the bolts to 33 Nm (24 ft. lbs.).
3. Position the liftgate hinge to the liftgate (1) and loosely install the retaining bolts.
4. Tighten the two outer retaining bolts to 33 Nm (24 ft. lbs.) and the center bolt to 12 Nm (105 in. lbs.).
5. Remove the duct tape from the roof and liftgate.
6. Align the liftgate. The liftgate should fit flush and have even gaps to adjacent body panels. Gap specifications are as follows:
- 7 mm (0.280 in.) to the fascia.
- 6 mm (0.240 in.) to the roof header.
- 4 mm (0.160 in.) to the body side.

7. Reinstall the headliner and trim panels as necessary Headliner - Installation.
