B1B09
B1B09-PASSENGER AIRBAG SQUIB 1 CIRCUIT HIGH
For a complete wiring diagram Consult Diagrams/Electrical.
- When Monitored:
With the ignition on, the Occupant Restraint Controller (ORC) monitors the voltage on the Passenger Squib 1 circuits.
- Set Condition:
When the ORC has detected voltage on the Passenger Squib 1 circuits.
Diagnostic Test
1. DETERMINE ACTIVE OR STORED DTC
NOTE: Ensure the battery is fully charged.
NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following test.
Select Active or Stored DTC.
Is the DTC active or stored?
ORC - ACTIVE DTC
- Go To 2
ORC - STORED DTC
- Go To 5
2. CHECK FOR SHORTED SQUIB CIRCUITS IN PASSENGER AIRBAG
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the Passenger Airbag Squib connector.
WARNING: To avoid serious or fatal injury, do not place an intact undeployed airbag face down on a hard surface, the airbag will propel into the air if accidentally deployed.
NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool to the Passenger Airbag Squib connector.
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
With the scan tool, read the active ORC DTC's.
Does the scan tool display: B1B09 PASSENGER AIRBAG SQUIB 1 CIRCUIT HIGH?
Yes
- Go To3
No
- Replace the Passenger Airbag.
- PERFORM *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
3. CHECK (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT AND (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT FOR A SHORT TO BATTERY
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Disconnect the 8443 Load Tool from the Passenger Airbag Squib connector.
Disconnect the ORC connectors.
NOTE: Check connectors - Clean and repair as necessary.
Connect the 8443 Load Tool ORC Adaptor to the ORC C2 connector.

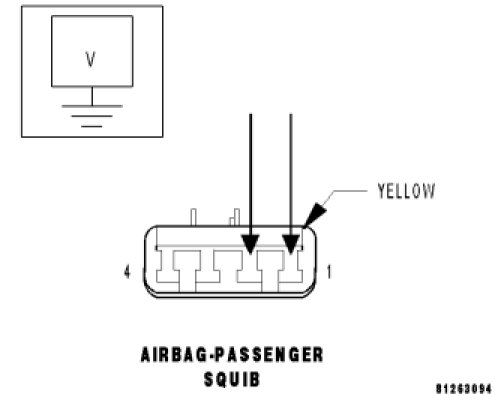

Measure the voltage of the (R42) Passenger Squib 1 Line 2 circuit between the Passenger Airbag Squib connector and ground.
Measure the voltage of the (R44) Passenger Squib 1 Line 1 circuit between the Passenger Airbag Squib connector and ground.
Is there any voltage present on either circuit?
Yes
- Repair the Passenger Squib 1 circuits with voltage present for a short to battery.
- PERFORM *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
No
- Go To 4
4. REPLACE THE ORC
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.
View Repair
Repair
- Replace the ORC.
- PERFORM *ORC VERIFICATION TEST - VER 1. Occupant Restraint Controller (ORC) Verification Test
5. STORED ORC DTC
With the scan tool, record and erase all DTC's from all Airbag System Modules.
If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.
WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
The following additional checks may assist you in identifying a possible intermittent problem.
Reconnect any disconnected components and harness connector.
WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.
If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.
If only stored codes return continue the test until the problem area has been isolated.
In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.
Are any ACTIVE DTCs present?
Yes
- Diagnose and repair the DTC(s).
No
- No problem found at this time. Erase all codes before returning vehicle to customer.
