P0116
P0116-ENGINE COOLANT TEMPERATURE SENSOR PERFORMANCE
For a complete wiring diagram Consult Diagrams/Electrical.
Theory of Operation
The PCM compares engine coolant temperature (ECT), intake air temperature (IAT), and ambient air temperature (AAT) under cold start conditions. Following a start to run delay time, the sensor values are compared. If the one sensor value is not within a specified range of the other two sensors, the value is determined to be irrational.
- When Monitored:
With engine off time greater than 480 minutes and ambient temperature greater than - 7° C (19.4° F).
- Set Condition:
After a calibrated amount of cool down time, the PCM compares the AAT, ECT, and IAT Sensor values. If one sensor value is not within 10° C (18° F) of the other temperature sensors for two consecutive trips, a DTC will set. Three good trips to turn off the MIL.

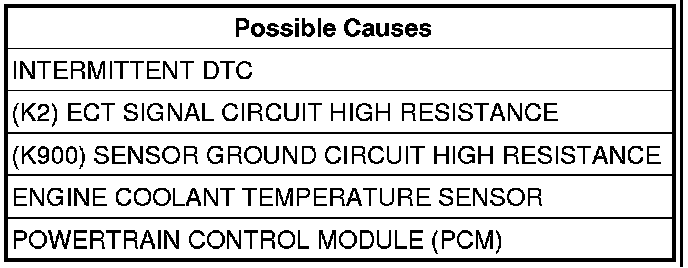

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. Initial Inspection and Diagnostic Overview.
Diagnostic Test
1. DTC IS ACTIVE
NOTE: Diagnose any CAN - C Communication DTCs before continuing.
Turn the ignition off.
If possible, allow the vehicle to sit with the ignition off for more than 480 minutes in an environment where the temperature is consistent and above - 7° C (19.4° F).
Test drive the vehicle. The vehicle must exceed 48 km/h (30 mph) during the test drive. Do not cycle the ignition off when the test drive is completed.
With a scan tool, select View DTCs.
Is the status Active or Pending for this DTC?
Yes
- Go to 3
No
- Go to 2
2. AMBIENT AIR TEMPERATURE
Turn the ignition off.
Allow the vehicle to sit with the ignition off in an environment where the temperature is consistent and above - 7° C (19.4° F) until the engine coolant temperature is equal to ambient temperature.
Turn the ignition on.
With a scan tool, compare the AAT, ECT, and IAT sensor values.
Is the Engine Coolant Temperature Sensor value within 10° C (18° F) of the other two sensor values?
Yes
- REFER TO the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure.Checking For An Intermittent DTC
No
- Go to 3
3. ENGINE COOLANT TEMPERATURE SENSOR VOLTAGE
Turn the ignition off.
Disconnect the Engine Coolant Temperature Sensor harness connector.
Turn the ignition on.
With a scan tool, read the Engine Coolant Temperature Sensor voltage.
NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 volt) with the connector disconnected.
Does the scan tool display the voltage as described above?
Yes
- Go to 4
No
- Go to 5
4. ENGINE COOLANT TEMPERATURE SENSOR
Turn the ignition off.
Connect a jumper wire between the (K2) ECT Signal circuit and the (K900) Sensor Ground circuit in the Engine Coolant Temperature Sensor harness connector.
Turn the ignition on.
With a scan tool, read the Engine Coolant Temperature Sensor voltage.
NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus.1 volt) with the jumper wire in place.
Does the scan tool display the voltage as described above?
Yes
- Replace the Engine Coolant Temperature Sensor.
- Perform the PCM Verification Test.Powertrain Verification Test
No
- Go to 5
5. (K2) ECT SIGNAL CIRCUIT HIGH RESISTANCE
Turn the ignition off.
Connect the Engine Coolant Temperature Sensor harness connector.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 along with the #8815-1 to perform the diagnosis.
Using a voltmeter, perform a voltage drop test by backprobing the (K2) ECT Signal circuit at the Engine Coolant Temperature Sensor harness connector and probing the appropriate terminal of the special tool #8815. Make sure the voltmeter leads are connected so that positive polarity is displayed on the voltmeter.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
Start the engine.
Is the voltage below 0.5 volts?
Yes
- Go to 6
No
- Repair the (K2) ECT Signal circuit for high resistance.
- Perform the PCM Verification Test.Powertrain Verification Test
6. (K900) SENSOR GROUND CIRCUIT HIGH RESISTANCE
Turn the ignition off.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 along with the #8815-1 to perform the diagnosis.
Using a voltmeter, perform a voltage drop test by backprobing the (K900) Sensor Ground circuit at the Engine Coolant Temperature Sensor harness connector and probing the appropriate terminal of the special tool #8815. Make sure the voltmeter leads are connected so that positive polarity is displayed on the voltmeter.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
Start the engine.
Is the voltage below 0.5 volts?
Yes
- Go to 7
No
- Repair the (K900) Sensor Ground circuit for high resistance.
- Perform the PCM Verification Test.Powertrain Verification Test
7. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Engine Coolant Temperature Sensor and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Search for any Technical Service Bulletins that may apply.
Were any problems found?
Yes
- Repair as necessary.
- Perform the PCM Verification Test.Powertrain Verification Test
No
- Replace the Powertrain Control Module (PCM).
- Perform the PCM Verification Test.Powertrain Verification Test
