Front Door Window Regulator - Removal

REMOVAL





1. Remove door trim panel Front Door Trim Panel - Removal.
2. Disconnect door glass from regulator and carrier plate Front Door Glass - Removal.

NOTE: The window glass does not have to be removed. Lift it all the way up into the weather-strip and affix with tape to hold in place.

3. Remove carrier plate Front Door Carrier Plate - Removal.
4. Remove the power window lift motor Removal.
5. Loosen screws attaching regulator scissor channel to door panel.

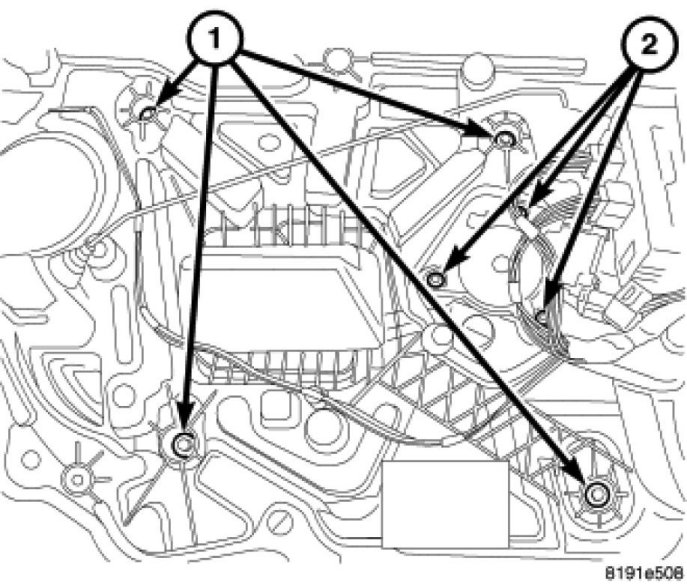

6. Loosen bolts (1) attaching regulator to door panel.
7. Remove regulator from door panel.
8. Slide regulator rearward and rotate forward end of roller channel through access hole in door panel.
