C117

Component ID: 42
Component : C117

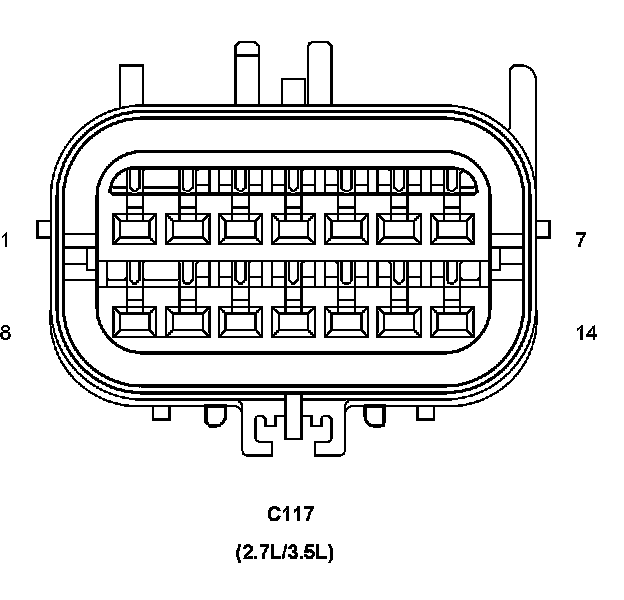

Connector:
Name : C117
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : FEMALE




Pin Circuit Description
1 K299 16BR/WT O2 1/2 HEATER CONTROL
2 K399 16BR/GY O2 2/2 HEATER CONTROL
3 K904 20DB/DG O2 RETURN (DOWN)
4 K243 20BR O2 2/2 SIGNAL
5 K141 20DB/YL O2 1/2 SIGNAL
6 Z902 20BK GROUND
6 Z931 16BK GROUND
7 Z902 20BK GROUND
7 Z931 16BK GROUND
8 Z902 20BK GROUND
8 Z931 16BK GROUND
9 Z902 20BK GROUND
9 Z931 16BK GROUND
10 Z902 16BK GROUND
10 Z931 16BK GROUND
11 Z902 16BK GROUND
11 Z931 16BK GROUND
12 Z902 16BK GROUND
12 Z931 16BK GROUND
13 Z902 16BK GROUND
13 Z931 16BK GROUND
14 - -

Component Location - 18

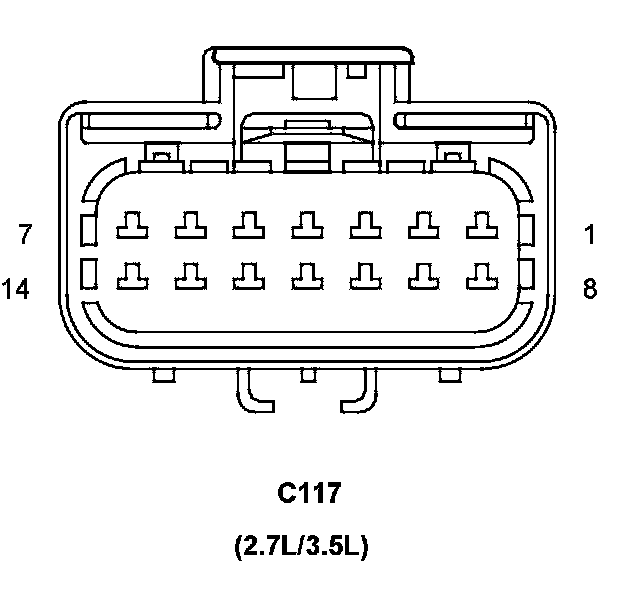

Connector:
Name : C117
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : MALE




Pin Circuit Description
1 K299 16BR/WT O2 1/2 HEATER CONTROL
2 K399 16BR/GY O2 2/2 HEATER CONTROL
3 K904 20DB/DG O2 RETURN (DOWN)
4 K243 20BR O2 2/2 SIGNAL
5 K141 20DB/YL O2 1/2 SIGNAL
6 Z902 20BK GROUND
7 Z902 20BK GROUND
8 Z902 20BK GROUND
9 Z902 20BK GROUND
10 Z902 16BK GROUND
11 Z902 16BK GROUND
12 Z902 16BK GROUND
13 Z902 16BK GROUND
14 - -

Component Location - 18
