C119

Component ID: 44
Component : C119

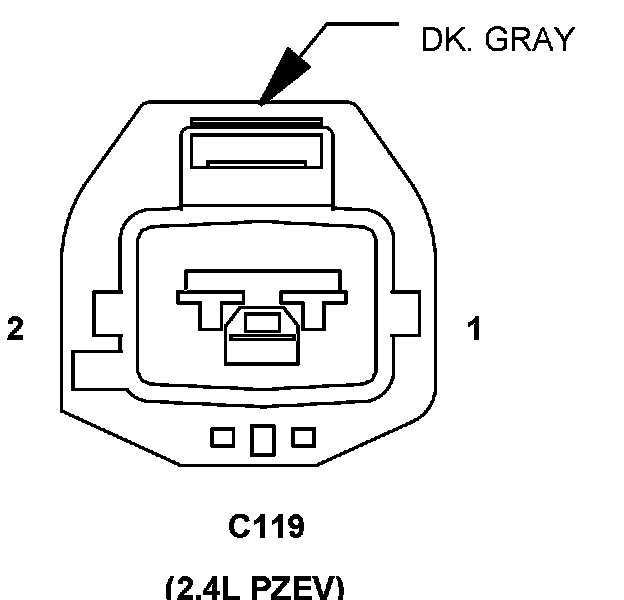

Connector:
Name : C119
Color : DK. GRAY
# of pins : 2
Qualifier : (2.4L PZEV)
Gender : FEMALE

Pin Circuit Description
1 Z931 12BK GROUND
2 A929 12 LB/WT FUSED B(+)

Component Location - 97

Component Location - 98

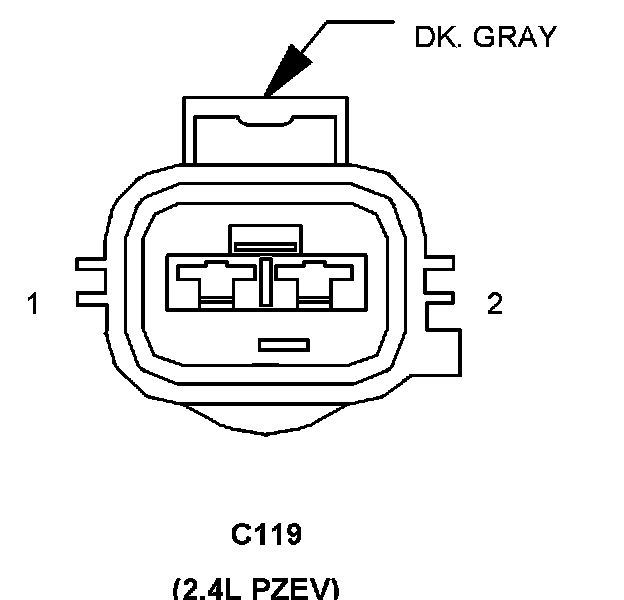

Connector:
Name : C119
Color : DK. GRAY
# of pins : 2
Qualifier : (2.4L PZEV)
Gender : MALE

Pin Circuit Description
1 Z931 12BK GROUND
2 A929 12RD FUSED B(+)

Component Location - 97

Component Location - 98
