C203

Component ID: 48
Component : C203

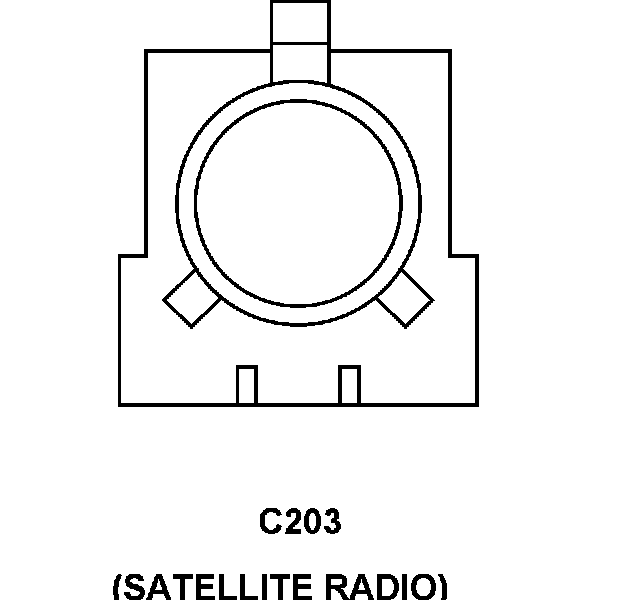

Connector:
Name : C203
Color :
# of pins : 2
Qualifier : (SATELLITE RADIO)
Gender : FEMALE




Pin Circuit Description
1 D106 6OR/WT SATELLITE ANTENNA SIGNAL
2 D126 OR/YL SATELLITE ANTENNA SHIELD

Component Location - 46




Component Location - 60






Connector:
Name : C203
Color :
# of pins : 2
Qualifier : (SATELLITE RADIO)
Gender : MALE




Pin Circuit Description
1 D106 6OR/WT SATELLITE ANTENNA SIGNAL
2 D126 OR/YL SATELLITE ANTENNA SHIELD

Component Location - 46




Component Location - 60
