Horn 1

Component ID: 147
Component : HORN 1

Connector:

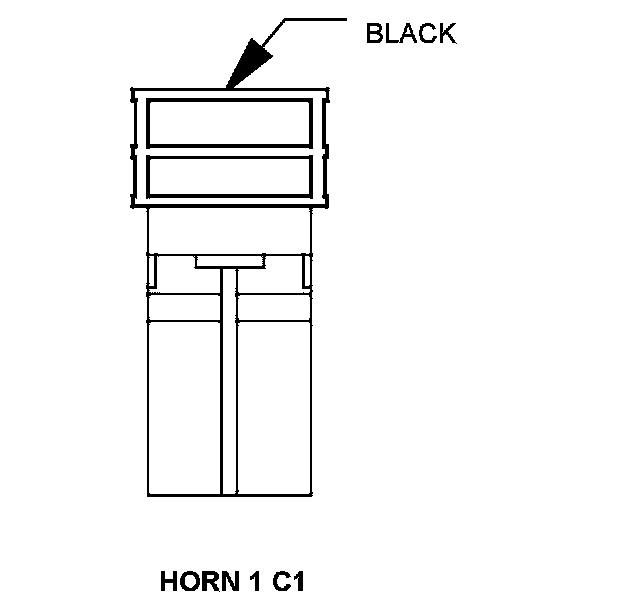

Name : HORN 1 C1
Color : BLACK
# of pins : 1

Pin Circuit Description
1 X21 18GY/YL HORN CONTROL OUTPUT

Component Location - 4

Connector:
Name : HORN 1 C2
Color : BLACK
# of pins : 1

Pin Circuit Description
1 Z920 18BK GROUND

Component Location - 4
