Lamp-License-Right

Component ID: 169

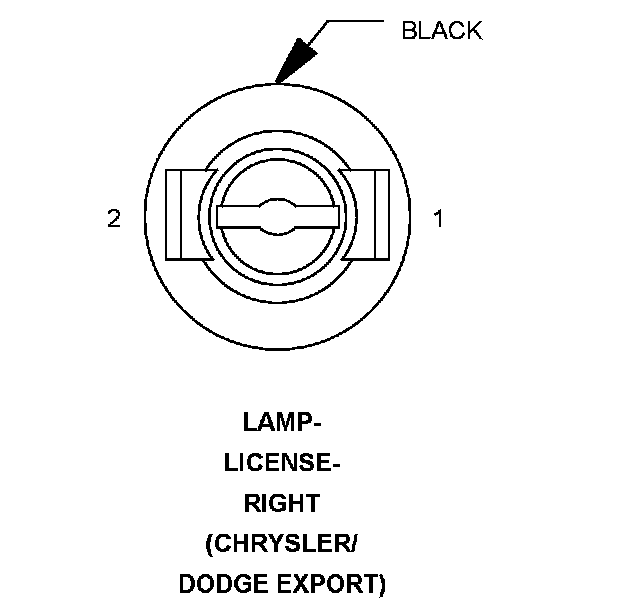

Component : LAMP-LICENSE-RIGHT

Connector:
Name : LAMP-LICENSE-RIGHT
Color : BLACK
# of pins : 2
Qualifier : (CHRYSLER/DODGE EXPORT)

Pin Circuit Description
1 L217 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z916 20BK GROUND

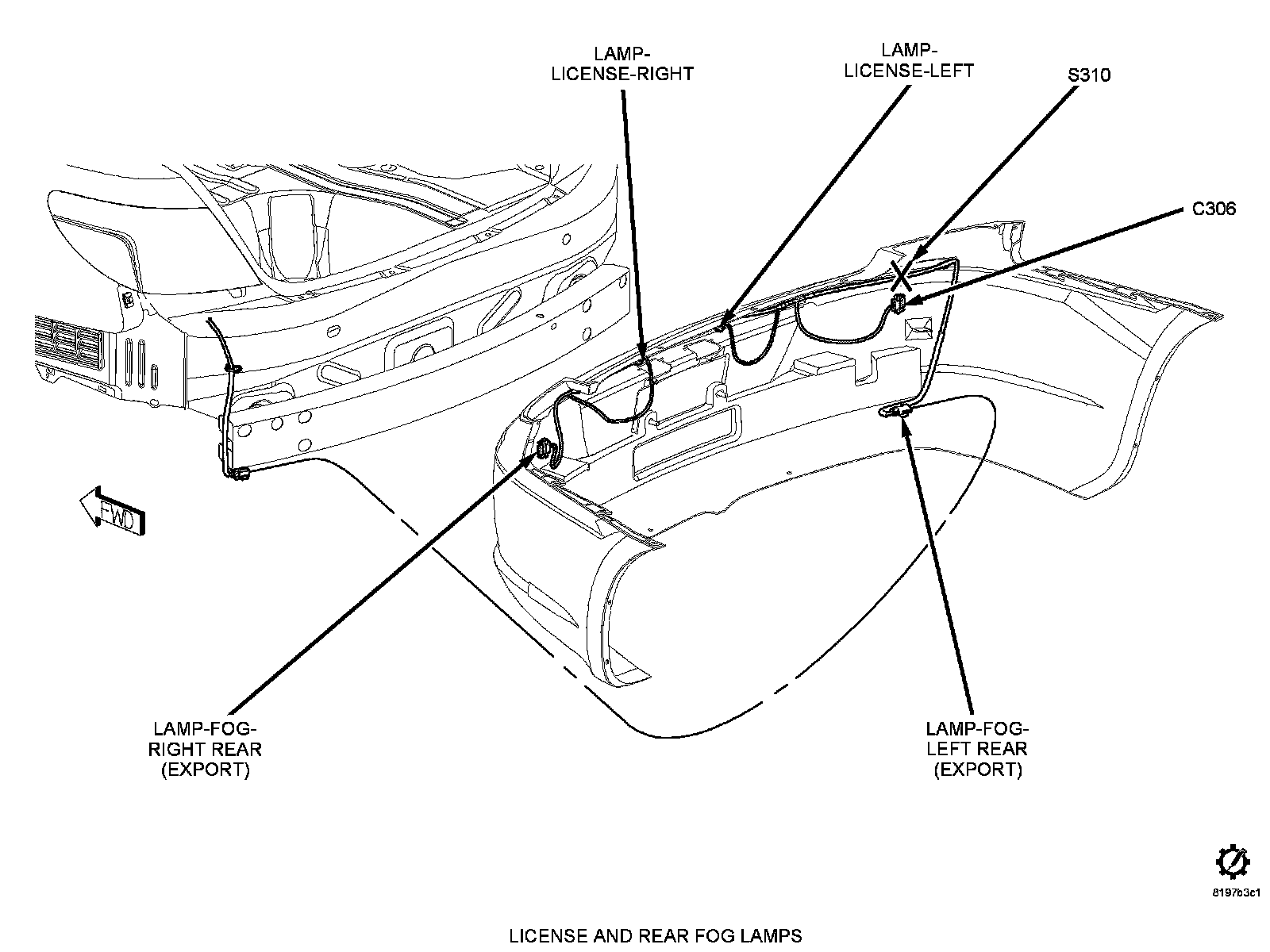

Component Location - 93

Component Location - 94
