Description

DESCRIPTION

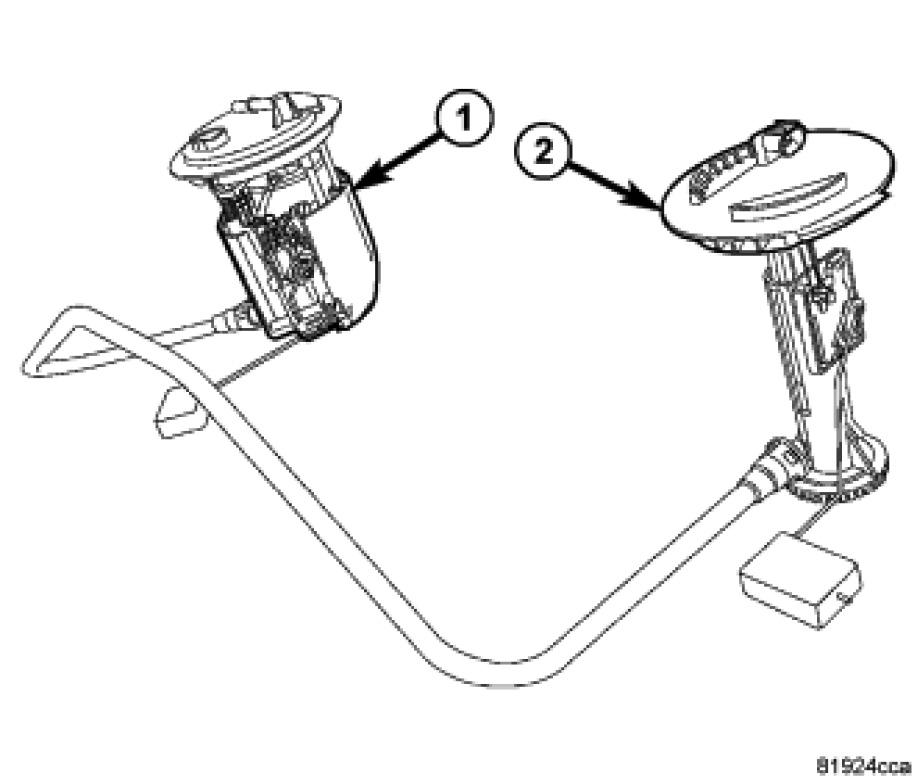

MODULES AWD PLASTIC TANK

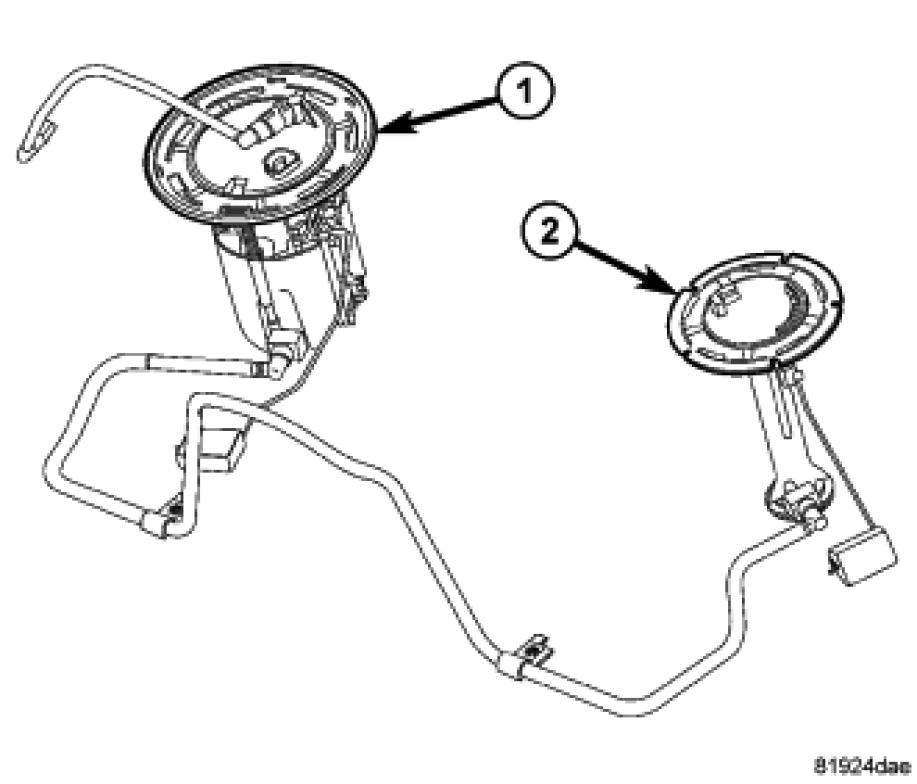

MODULES AWD STEEL TANK JS

The fuel pump module contains the fuel pump, fuel reservoir, level sensor, fuel pressure regulator, and fuel filter.

The main fuel level sensor located on the fuel pump module (1) is not serviceable for both front wheel drive (FWD) and all wheel drive (AWD) vehicles. Only the main fuel level sensor for the flex fuel vehicle (FFV) is serviceable. The secondary fuel level sensor (1) for the AWD vehicles is serviceable.
