Alternator

Component ID: 136
Component : GENERATOR

Connector:

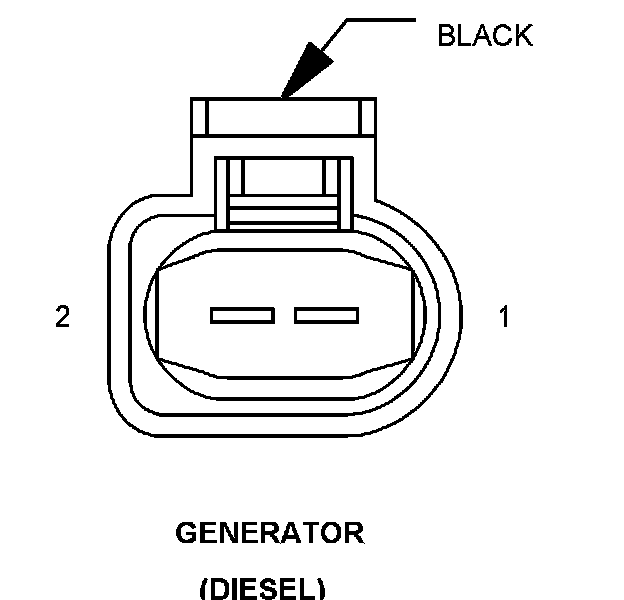

Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 G329 20VT/OR CHARGE INDICATOR SIGNAL
2 K92 16BR GEN OUTPUT SIGNAL

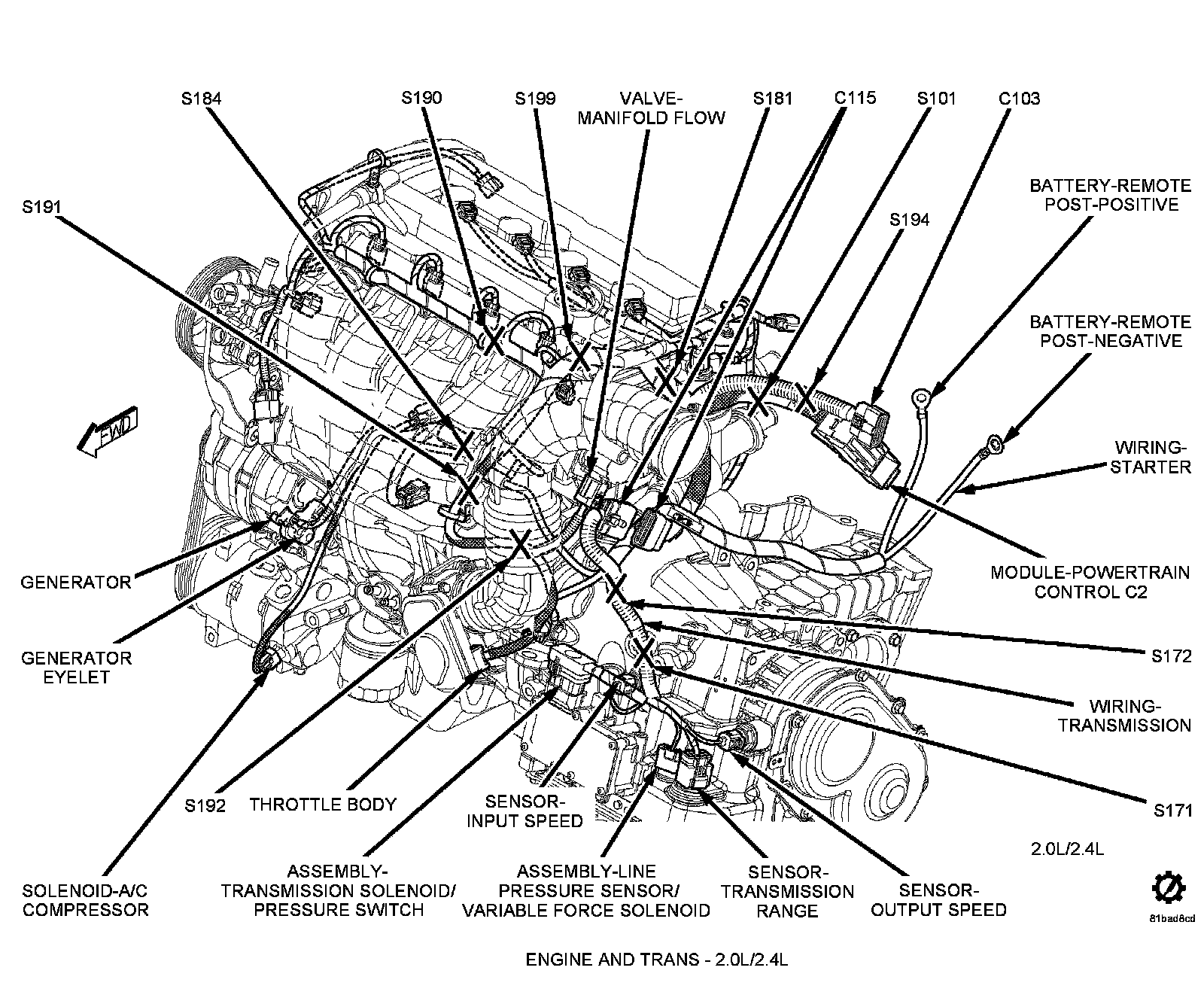

Component Location - 23

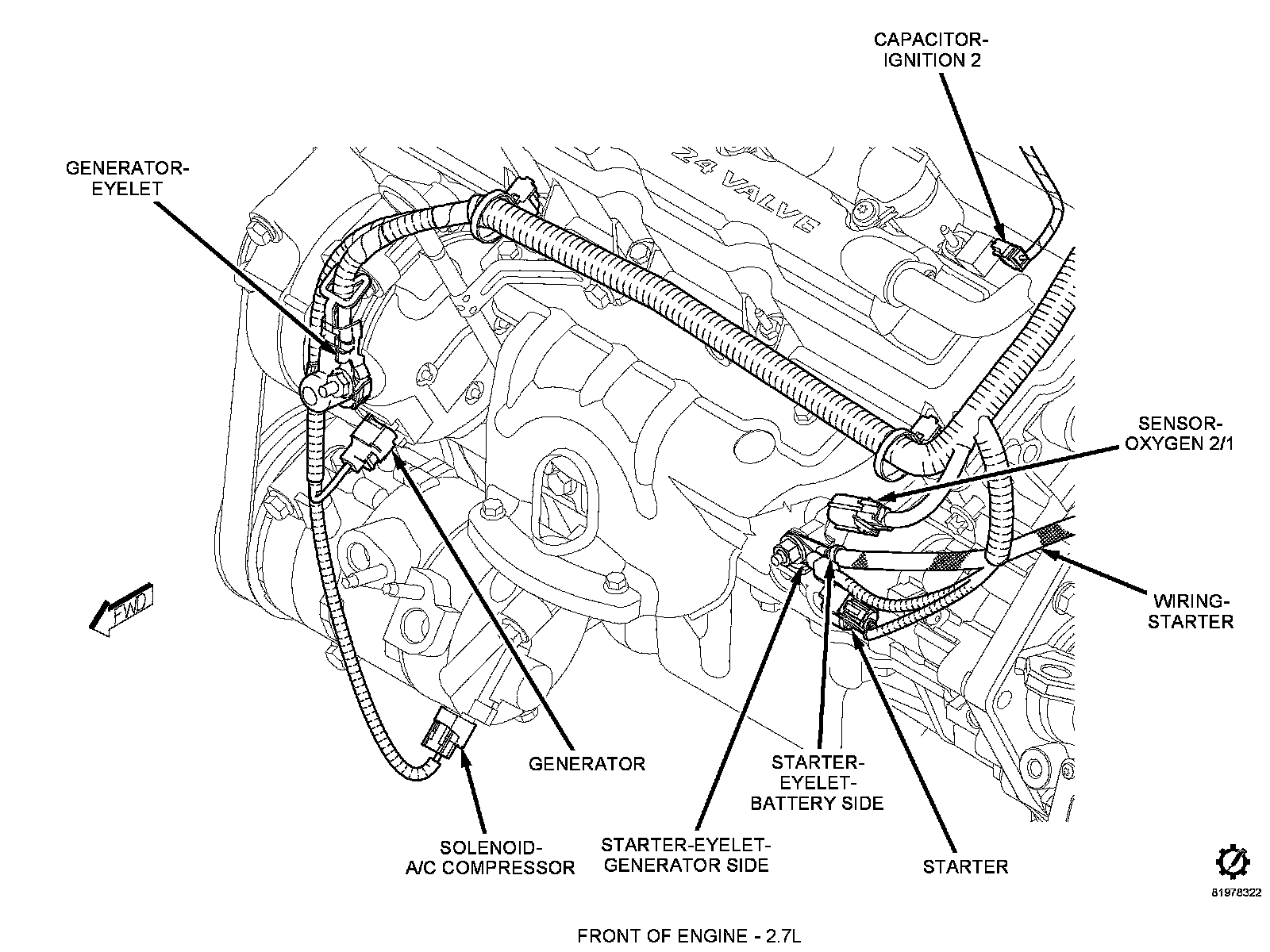

Component Location - 26

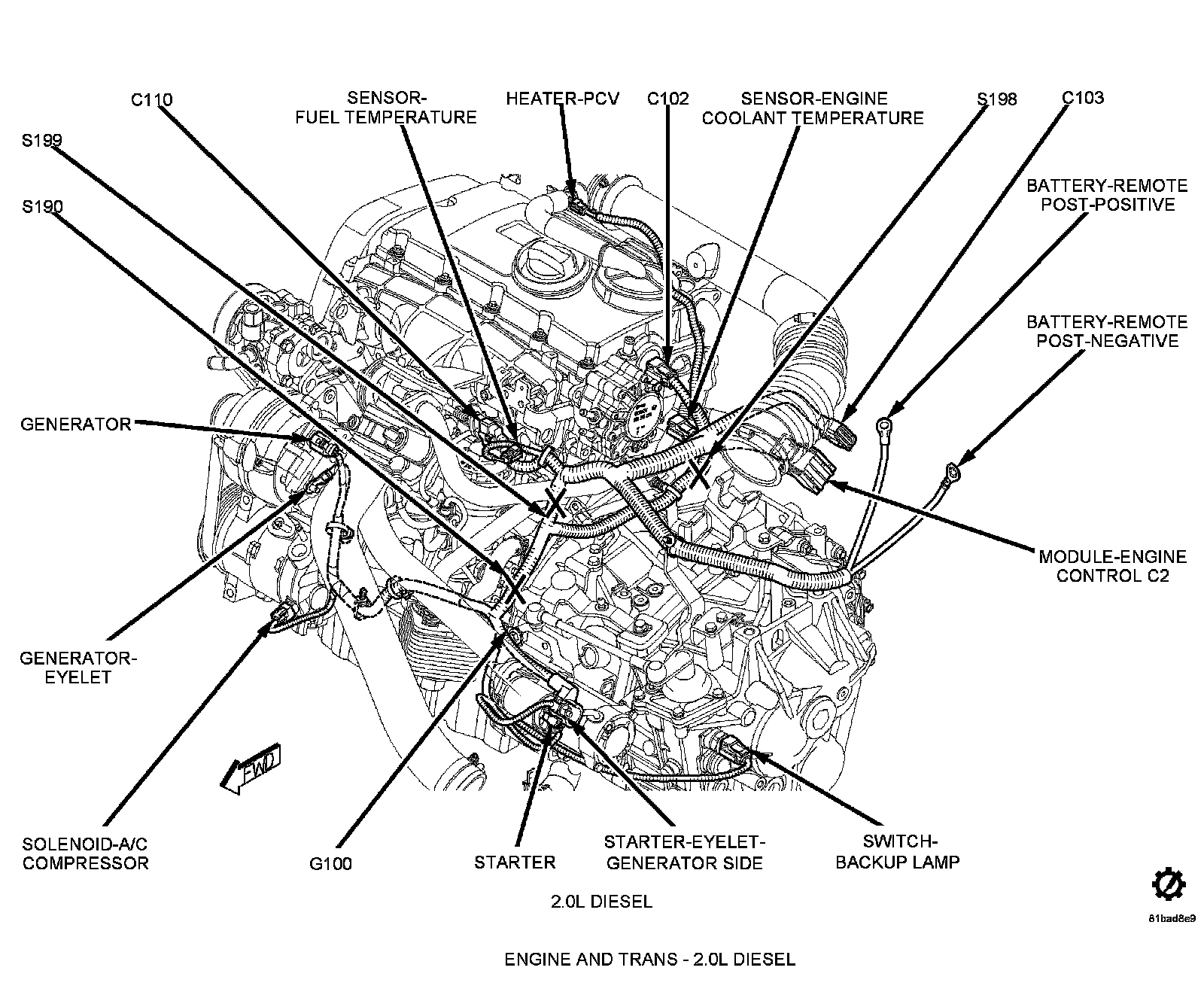

Component Location - 29




Component Location - 33






Connector:

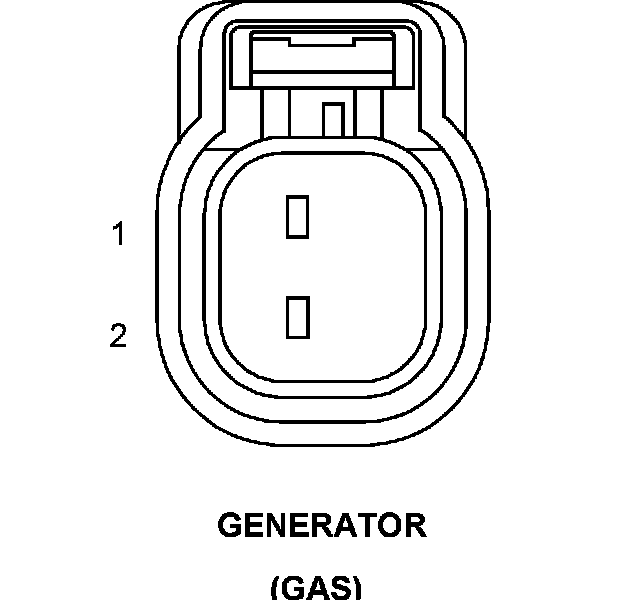

Name : GENERATOR
Color :
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K20 20BR/GY GEN FIELD CONTROL
2 A804 20RD/GY GEN SENSE

Component Location - 23




Component Location - 26




Component Location - 29




Component Location - 33






Connector:

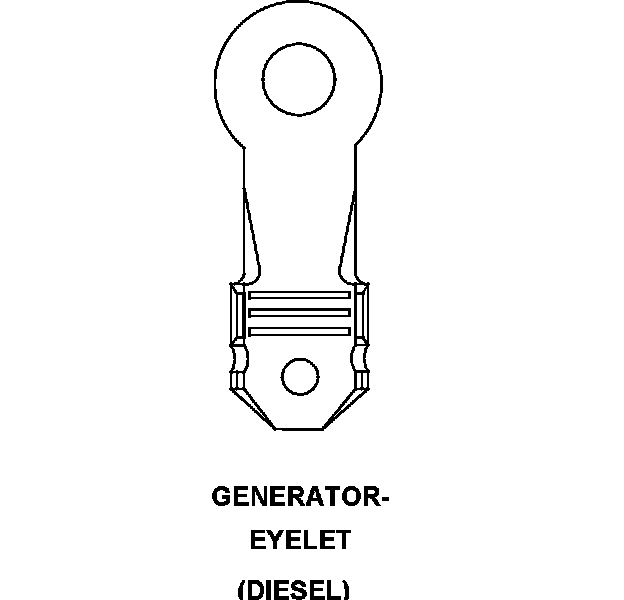

Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A801 4RD FUSED B(+)

Component Location - 23




Component Location - 26




Component Location - 29




Component Location - 33






Connector:

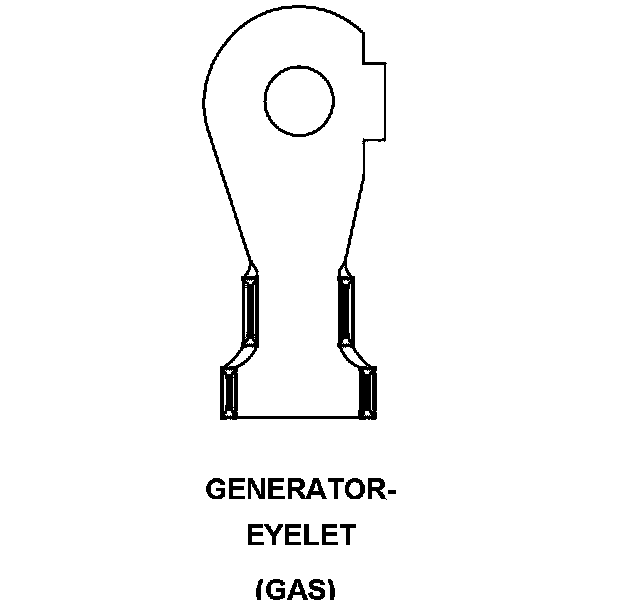

Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS)




Pin Circuit Description
1 A801 4RD FUSED B(+)

Component Location - 23




Component Location - 26




Component Location - 29




Component Location - 33
