Brake Fluid Level Sensor/Switch

Component ID: 383
Component : SENSOR-BRAKE FLUID LEVEL

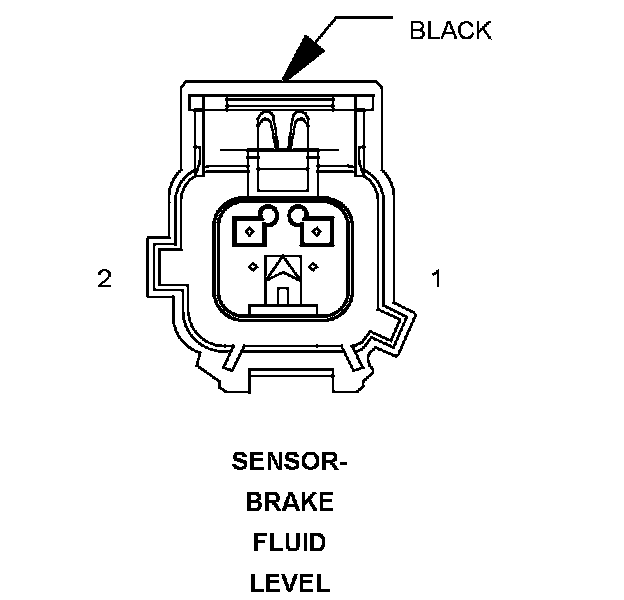

Connector:
Name : SENSOR-BRAKE FLUID LEVEL
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B20 20DG/OR BRAKE FLUID LEVEL SIGNAL
2 Z902 20BK GROUND
2 Z931 20BK GROUND

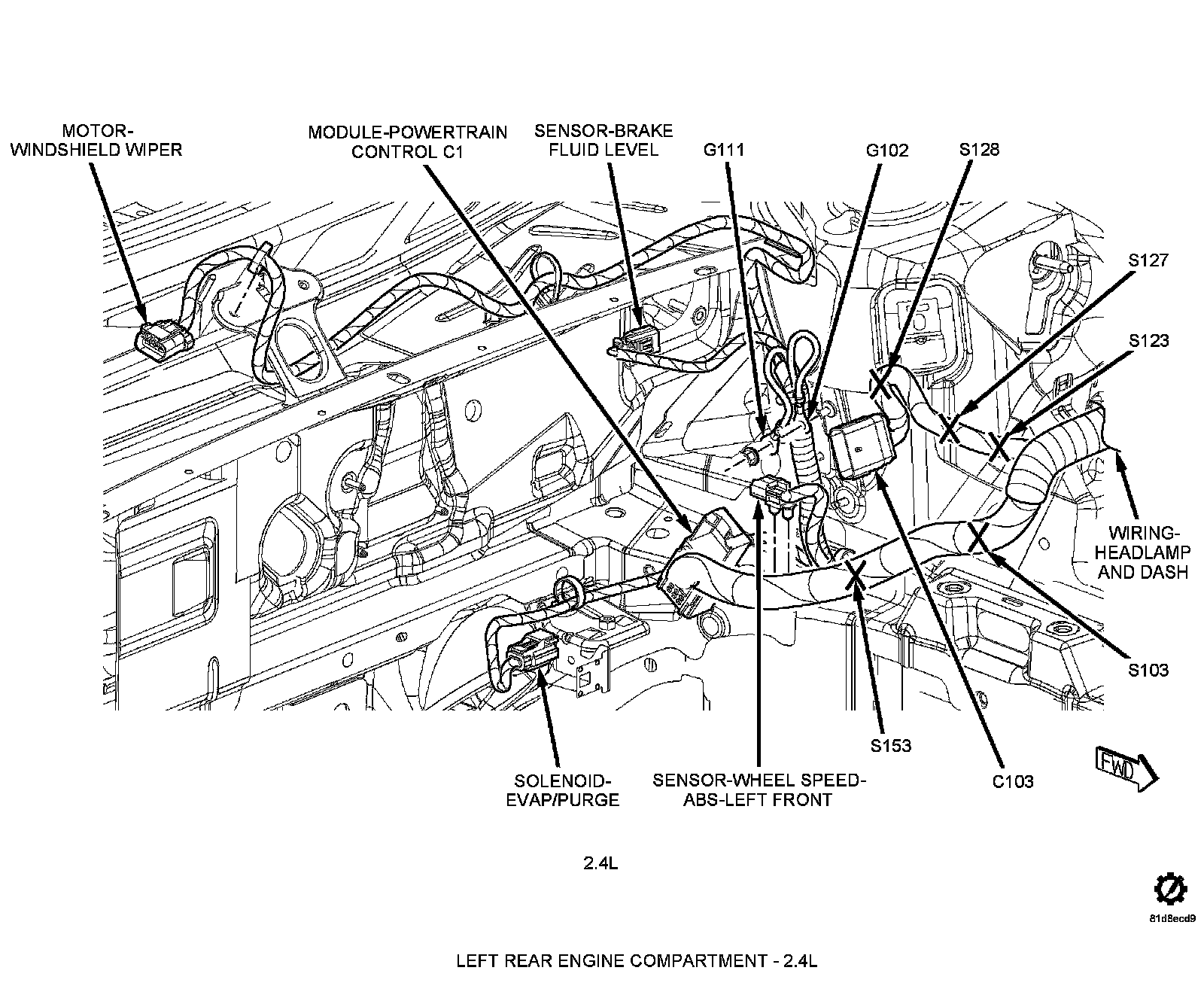

Component Location - 18

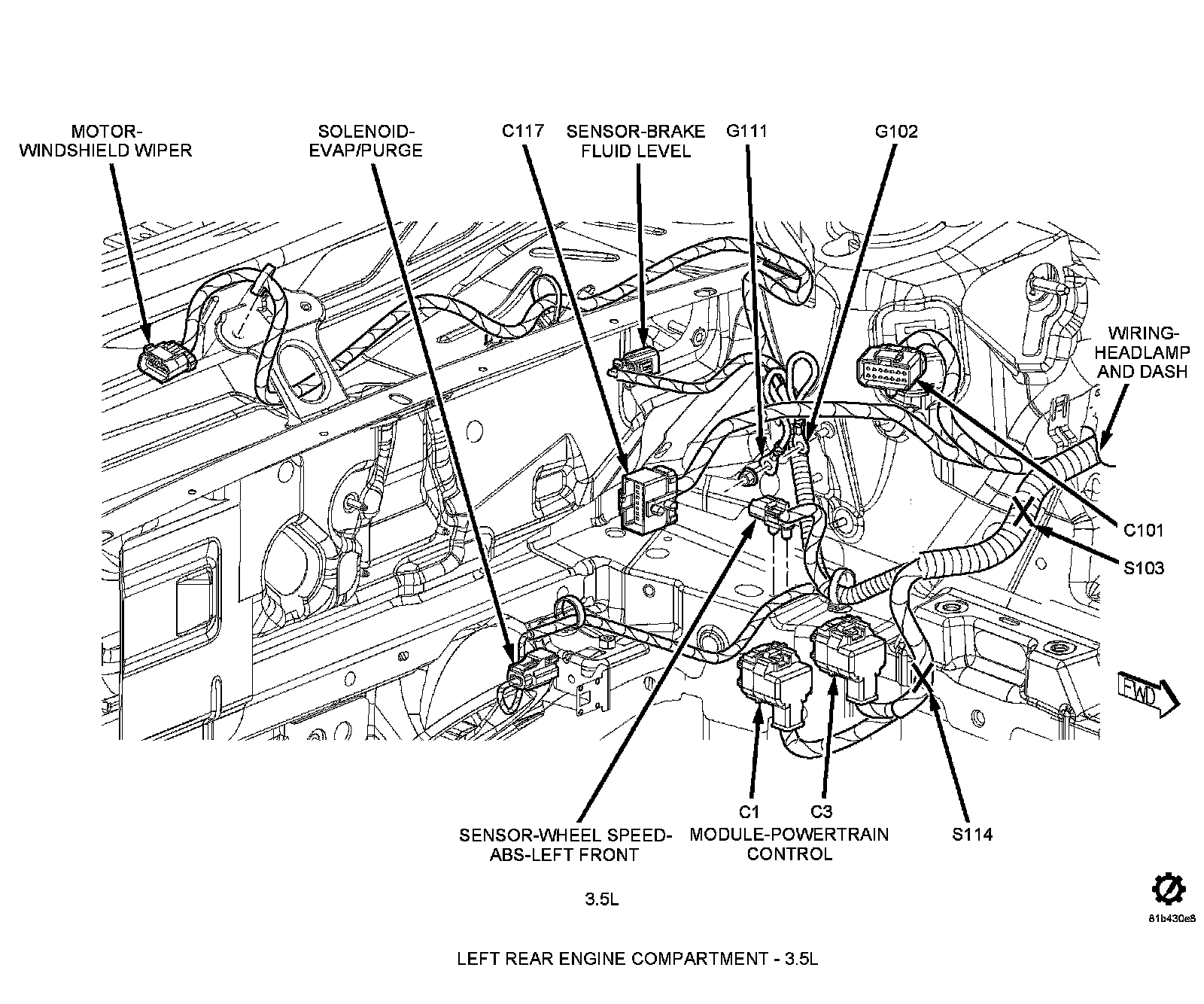

Component Location - 19




Component Location - 17
