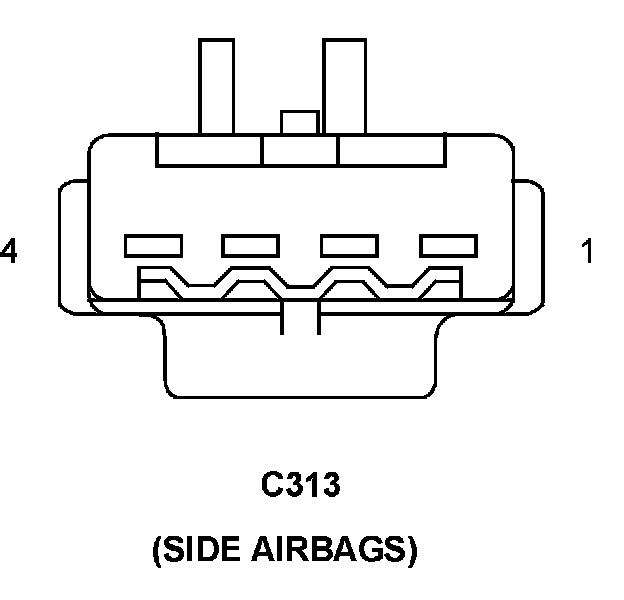

C313

Component ID: 64
Component : C313

Connector:
Name : C313
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)




Pin Circuit Description
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R6 18VT/LB RIGHT SEAT SQUIB 1 LINE 2
3 R5 20VT LEFT SEAT SQUIB 1 LINE 2
4 R8 18GY/LG RIGHT SEAT SQUIB 1 LINE 1
4 R7 20LG/GY LEFT SEAT SQUIB 1 LINE 1

Component Location - 63




Component Location - 65




Component Location - 66






Connector:
Name : C313
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)
Gender : FEMALE




Pin Circuit Description
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
3 R6 20VT/LB RIGHT SEAT SQUIB 1 LINE 2
3 R5 20VT LEFT SEAT SQUIB 1 LINE 2
4 R8 20GY/LG RIGHT SEAT SQUIB 1 LINE 1
4 R7 20LG/GY LEFT SEAT SQUIB 1 LINE 1

Component Location - 63




Component Location - 65




Component Location - 66
