Sensor-Engine Coolant Temperature 1

Component ID: 392
Component : SENSOR-ENGINE COOLANT TEMPERATURE 1

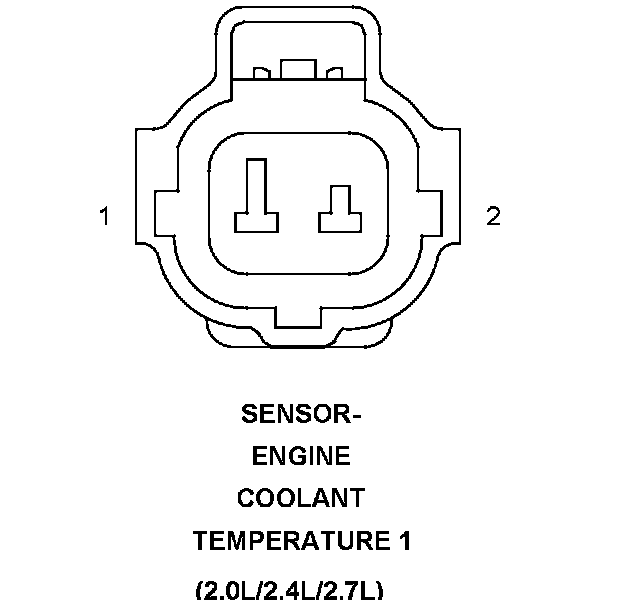

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 1
Color :
# of pins : 2
Qualifier : (2.0L/2.4L/2.7L)




Pin Circuit Description
1 K900 20DB/LB SENSOR GROUND
2 K2 20VT/OR ECT 1 SIGNAL

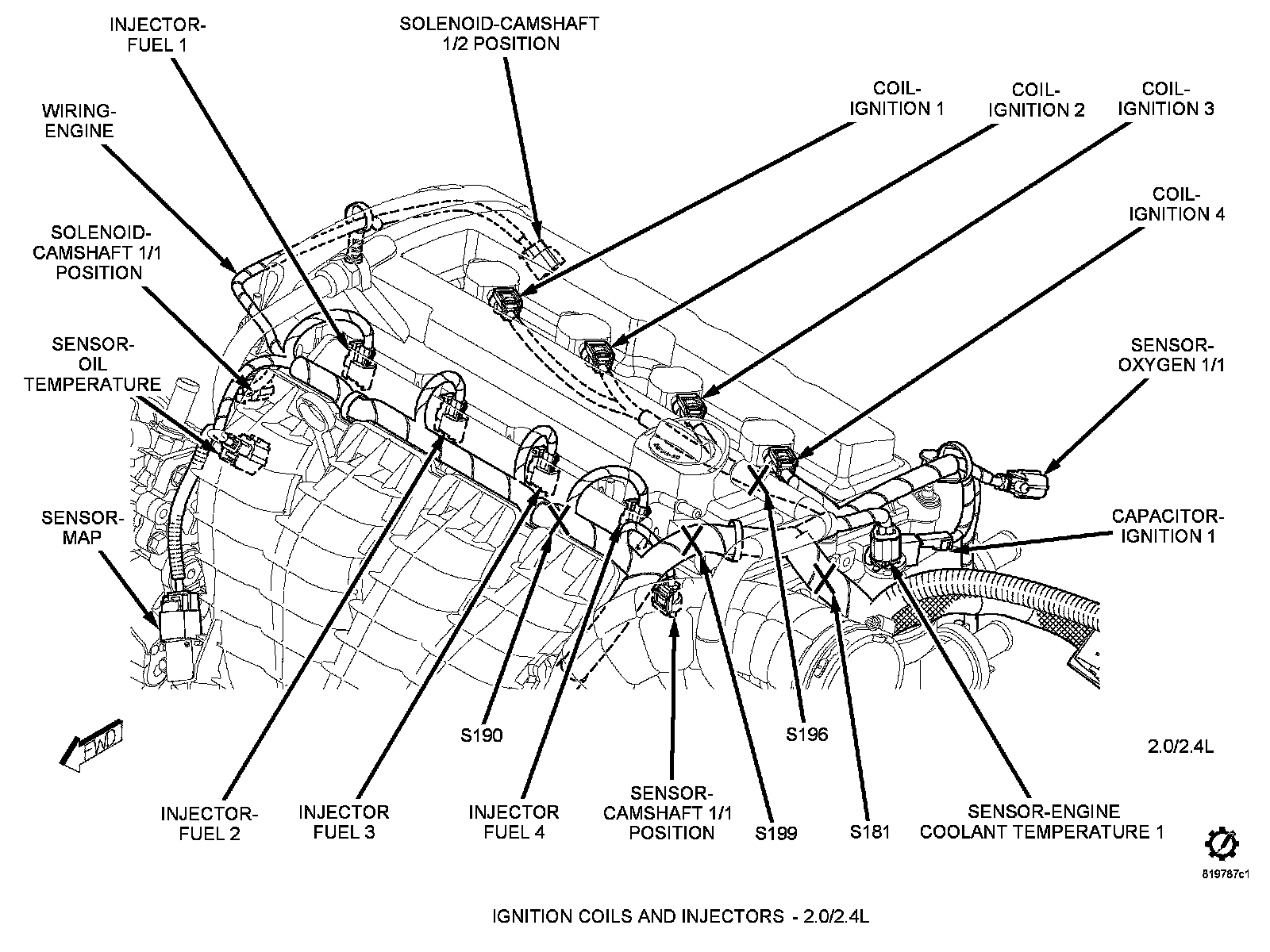

Component Location - 30




Component Location - 31
