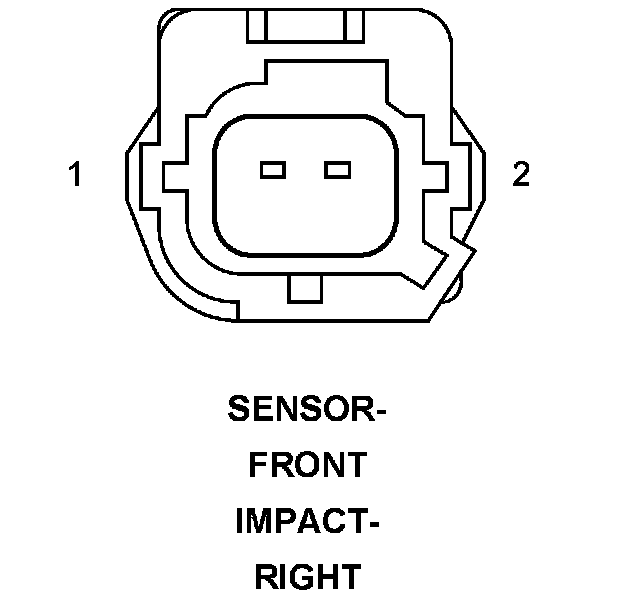

Sensor-Front Impact-Right

Component ID: 396
Component : SENSOR-FRONT IMPACT-RIGHT

Connector:
Name : SENSOR-FRONT IMPACT-RIGHT
Color :
# of pins : 2




Pin Circuit Description
1 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
2 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL

Component Location - 6
