Lamp-Park/Turn-Left Front

Component ID: 173
Component : LAMP-PARK/TURN-LEFT FRONT

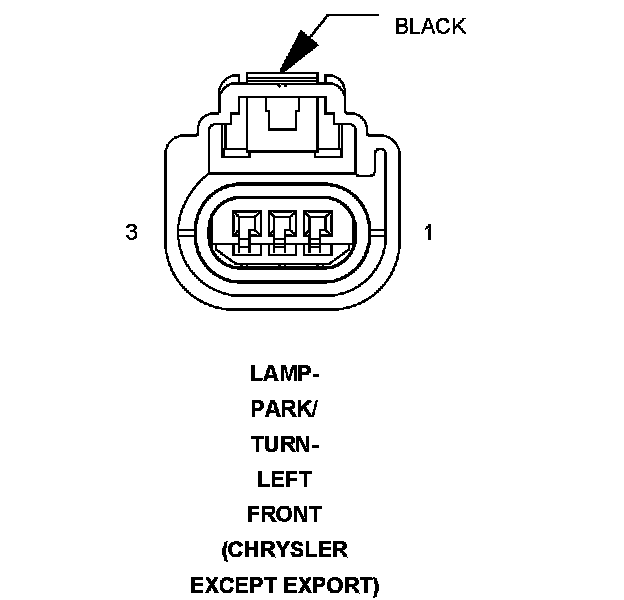

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (CHRYSLER EXCEPT EXPORT)




Pin Circuit Description
1 Z901 20BK GROUND
2 L7 20WT/YL HEADLAMP SWITCH OUTPUT
3 L61 20WT/LG LEFT TURN SIGNAL CONTROL

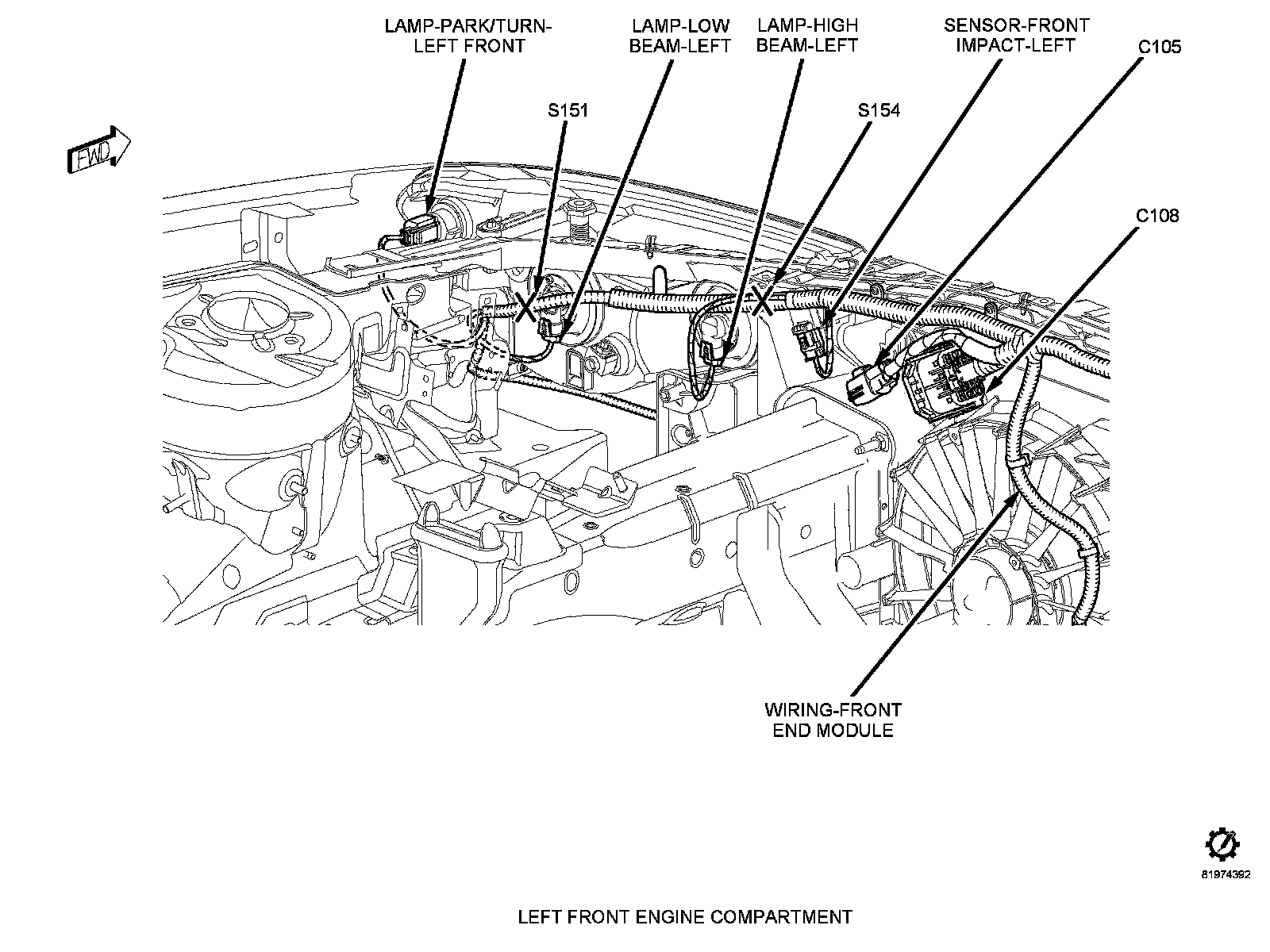

Component Location - 1




Component Location - 5






Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (DODGE EXCEPT EXPORT)




Pin Circuit Description
1 Z901 20BK GROUND
2 L7 20WT/YL HEADLAMP SWITCH OUTPUT
3 L61 20WT/LG LEFT TURN SIGNAL CONTROL

Component Location - 1




Component Location - 5
