Switch-Window/Door Lock-Driver

Component ID: 474
Component : SWITCH-WINDOW/DOOR LOCK-DRIVER

Connector:
Name : SWITCH-WINDOW/DOOR LOCK-DRIVER
Color : LT. GRAY
# of pins : 12
Qualifier : (JS27)




Pin Circuit Description
1 F981 16PK IGNITION SWITCH OUTPUT (RUN-ACC)
2 Q221 20GY/OR MASTER SWITCH LEFT FRONT WINDOW MUX
3 Q222 20OR/GY MASTER SWITCH RIGHT FRONT WINDOW MUX
4 P697 20LG/VT DRIVER DOOR LOCK SWITCH MUX
5 Z908 18BK GROUND
6 Z908 20BK GROUND
7 Q24 20OR/DG MASTER SWITCH RIGHT REAR WINDOW MUX
8 Q23 20OR/LB MASTER SWITCH LEFT REAR WINDOW MUX
9 Q15 20OR/PK WINDOW LOCK OUT SWITCH OUTPUT
10 - -
11 - -
12 Q994 20BK/BR DRIVER EXPRESS WINDOW SWITCH RETURN

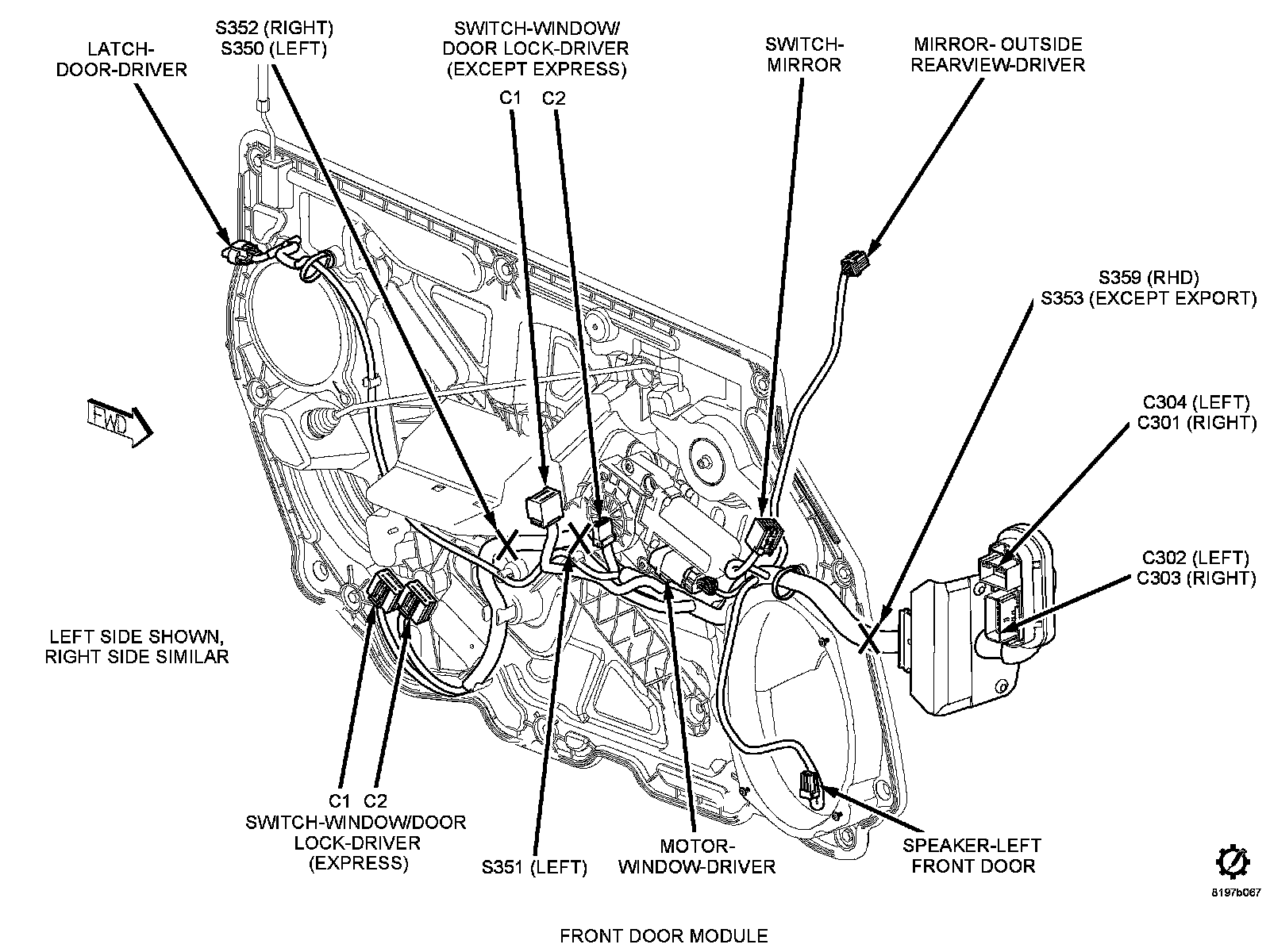

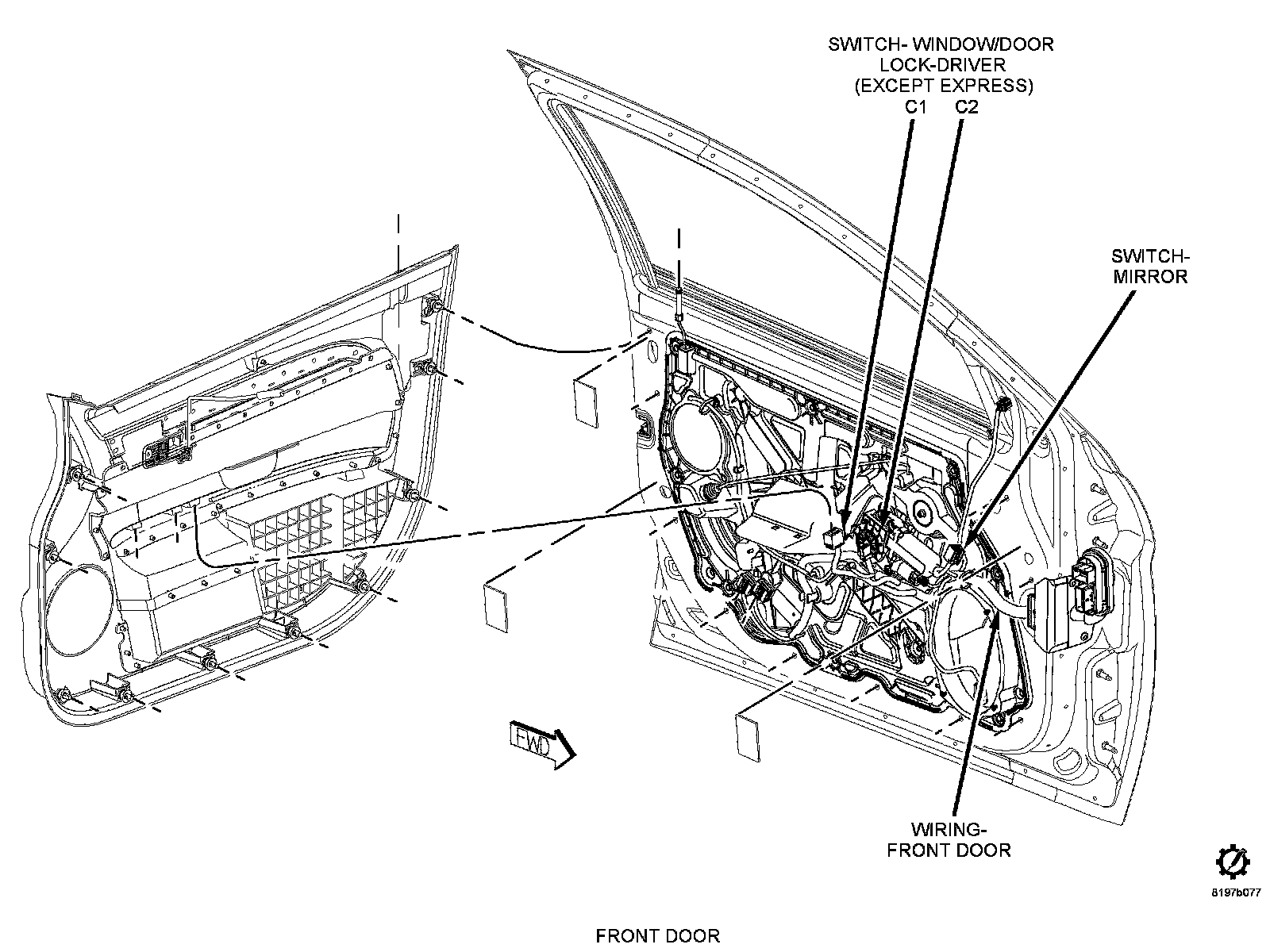

Component Location - 69




Component Location - 72




Component Location - 70






Connector:

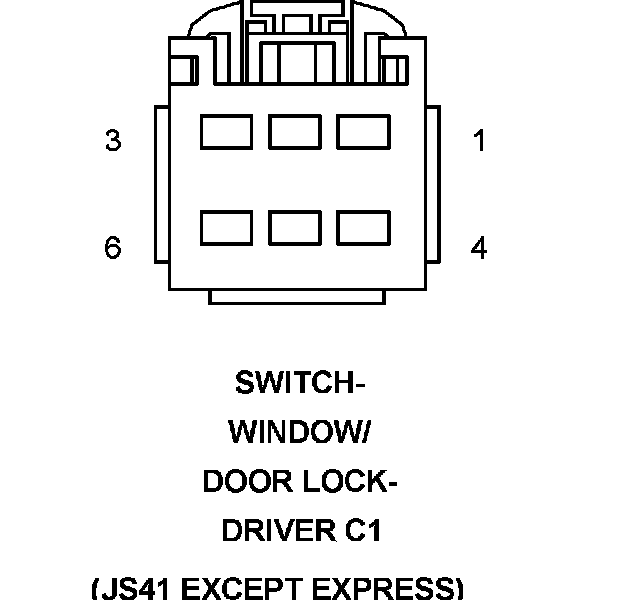

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER C1
Color :
# of pins : 6
Qualifier : (JS41 EXCEPT EXPRESS)




Pin Circuit Description
1 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
2 Q412 14OR/LG MASTER WINDOW SWITCH RIGHT REAR (UP)
3 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
4 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
5 Q26 14OR/YL MASTER WINDOW SWITCH PASSENGER (DOWN)
5 Q21 14OR/WT DRIVER WINDOW DRIVER (DOWN)
6 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
6 Q11 14OR/LG DRIVER WINDOW DRIVER (UP)

Component Location - 69




Component Location - 72




Component Location - 70






Connector:

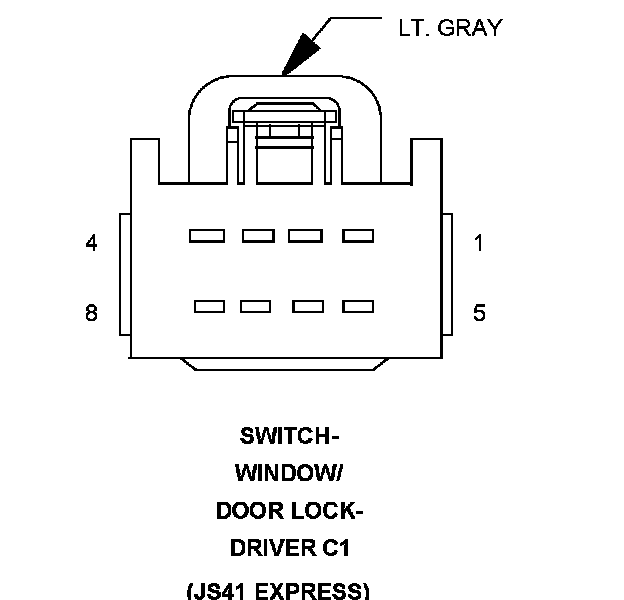

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER C1
Color : LT. GRAY
# of pins : 8
Qualifier : (JS41 EXPRESS)




Pin Circuit Description
1 F981 14PK IGNITION SWITCH OUTPUT (RUN-ACC)
2 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
3 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
4 Q612 14OR/DB MASTER WINDOW SWITCH RIGHT REAR (DOWN)
5 Q15 14OR/PK WINDOW LOCK OUT SWITCH OUTPUT
6 Z908 14BK GROUND
7 - -
8 Q412 14OR/LG MASTER WINDOW SWITCH RIGHT REAR (UP)

Component Location - 69




Component Location - 72




Component Location - 70






Connector:

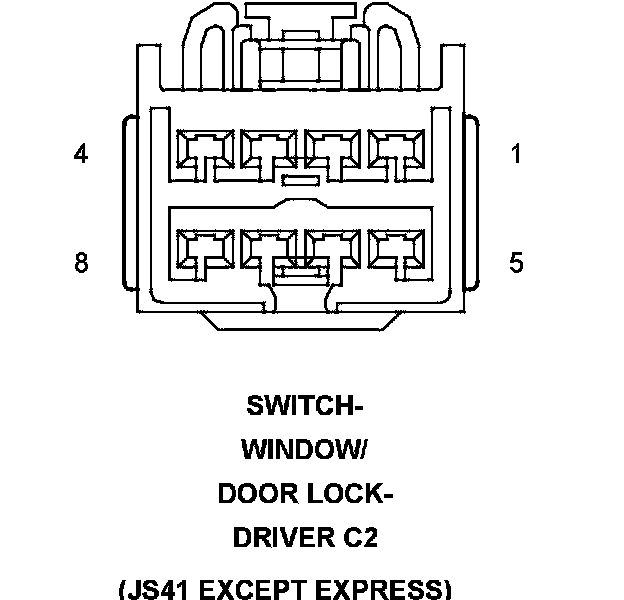

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER C2
Color :
# of pins : 8
Qualifier : (JS41 EXCEPT EXPRESS)




Pin Circuit Description
1 - -
2 F981 14PK IGNITION SWITCH OUTPUT (RUN-ACC)
3 Z908 14BK GROUND
4 Z908 14BK GROUND
5 Q15 14OR/PK WINDOW LOCK OUT SWITCH OUTPUT
6 Q21 14OR/WT DRIVER WINDOW DRIVER (DOWN)
6 Q26 14OR/YL MASTER WINDOW SWITCH PASSENGER (DOWN)
7 Q11 14OR/LG DRIVER WINDOW DRIVER (UP)
7 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
8 P697 22LG/VT DRIVER DOOR LOCK SWITCH MUX

Component Location - 69




Component Location - 72




Component Location - 70






Connector:

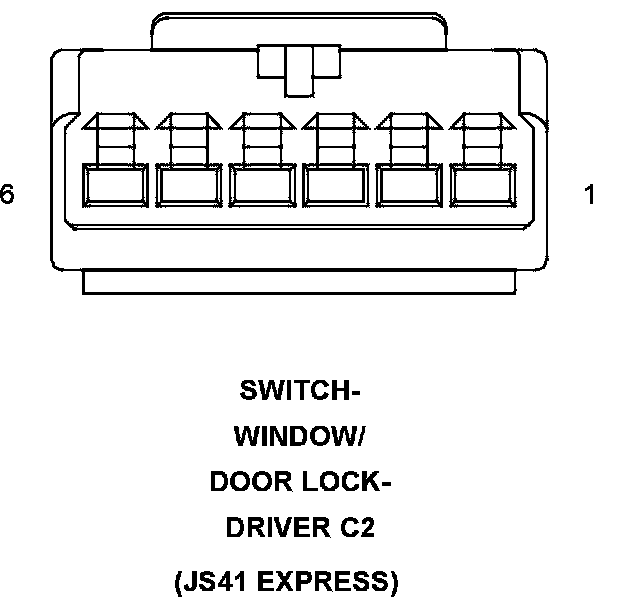

Name : SWITCH-WINDOW/DOOR LOCK-DRIVER C2
Color :
# of pins : 6
Qualifier : (JS41 EXPRESS)




Pin Circuit Description
1 Q221 20GY/OR MASTER SWITCH LEFT FRONT WINDOW MUX
2 Q222 20OR/GY MASTER SWITCH RIGHT FRONT WINDOW MUX
3 P697 22LG/VT DRIVER DOOR LOCK SWITCH MUX
4 Q994 20BK/BR DRIVER EXPRESS WINDOW SWITCH RETURN
5 Z908 20BK GROUND
6 - -

Component Location - 69




Component Location - 72




Component Location - 70
