Sensor-Infrared
Component ID: 398
Component : SENSOR-INFRARED

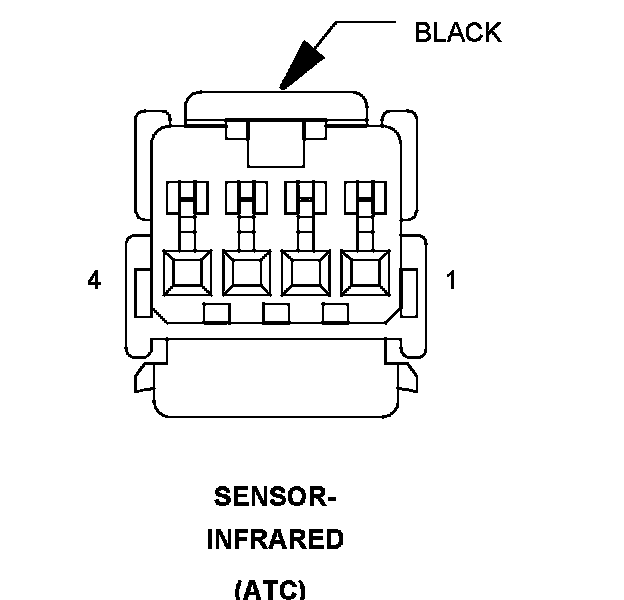

Connector:
Name : SENSOR-INFRARED
Color : BLACK
# of pins : 4
Qualifier : (ATC)
Pin Circuit Description
1 C830 20DB/YL IR SENSOR RETURN
Pin Circuit Description
1 F202 18PK/WT IGNITION SWITCH OUTPUT (RUN-START)
2 C83 20DB/LG IR SENSOR SIGNAL
3 C83 20DB/LG IR SENSOR SIGNAL
4 F202 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
4 C830 20DB/YL IR SENSOR RETURN

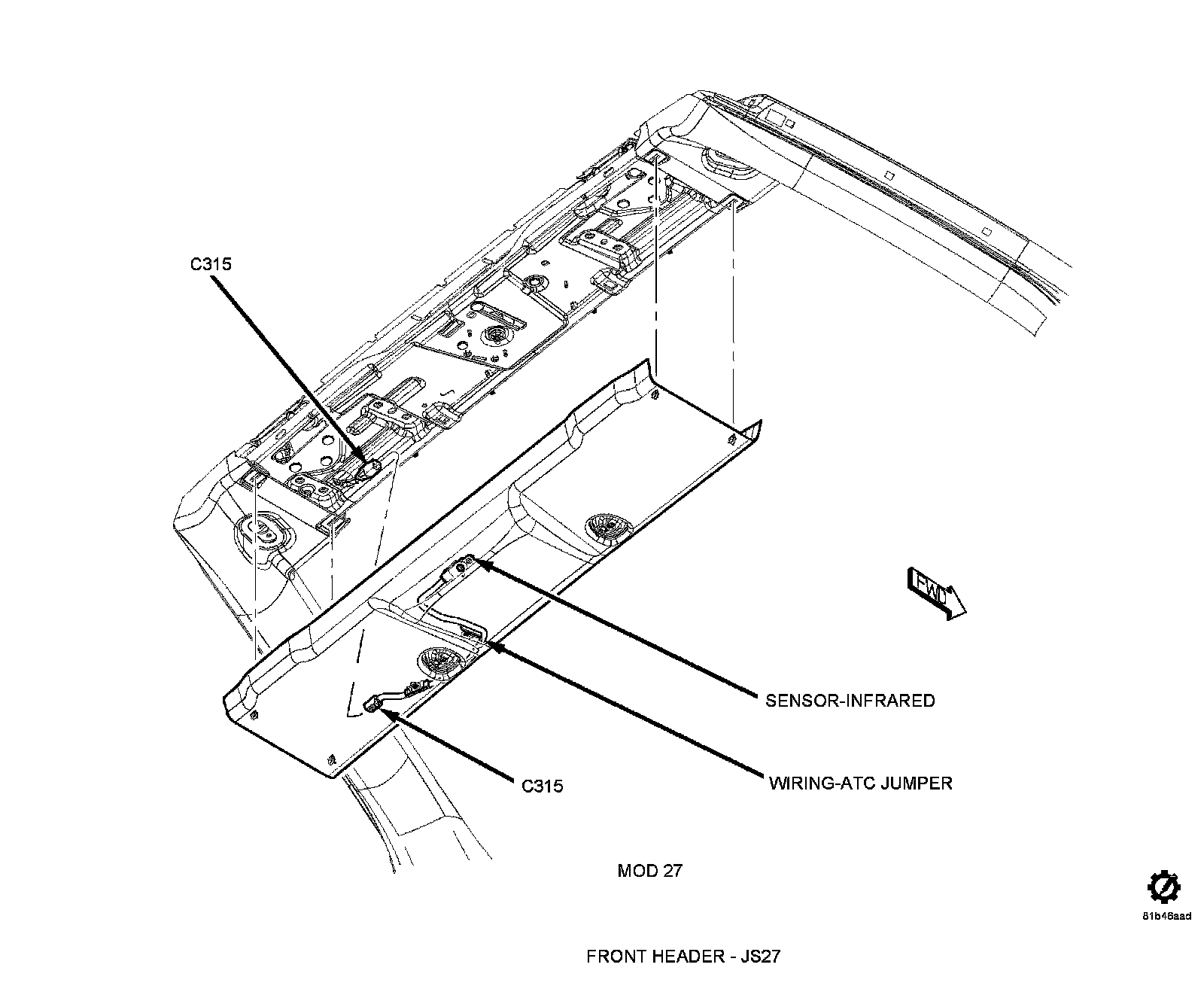

Component Location - 51

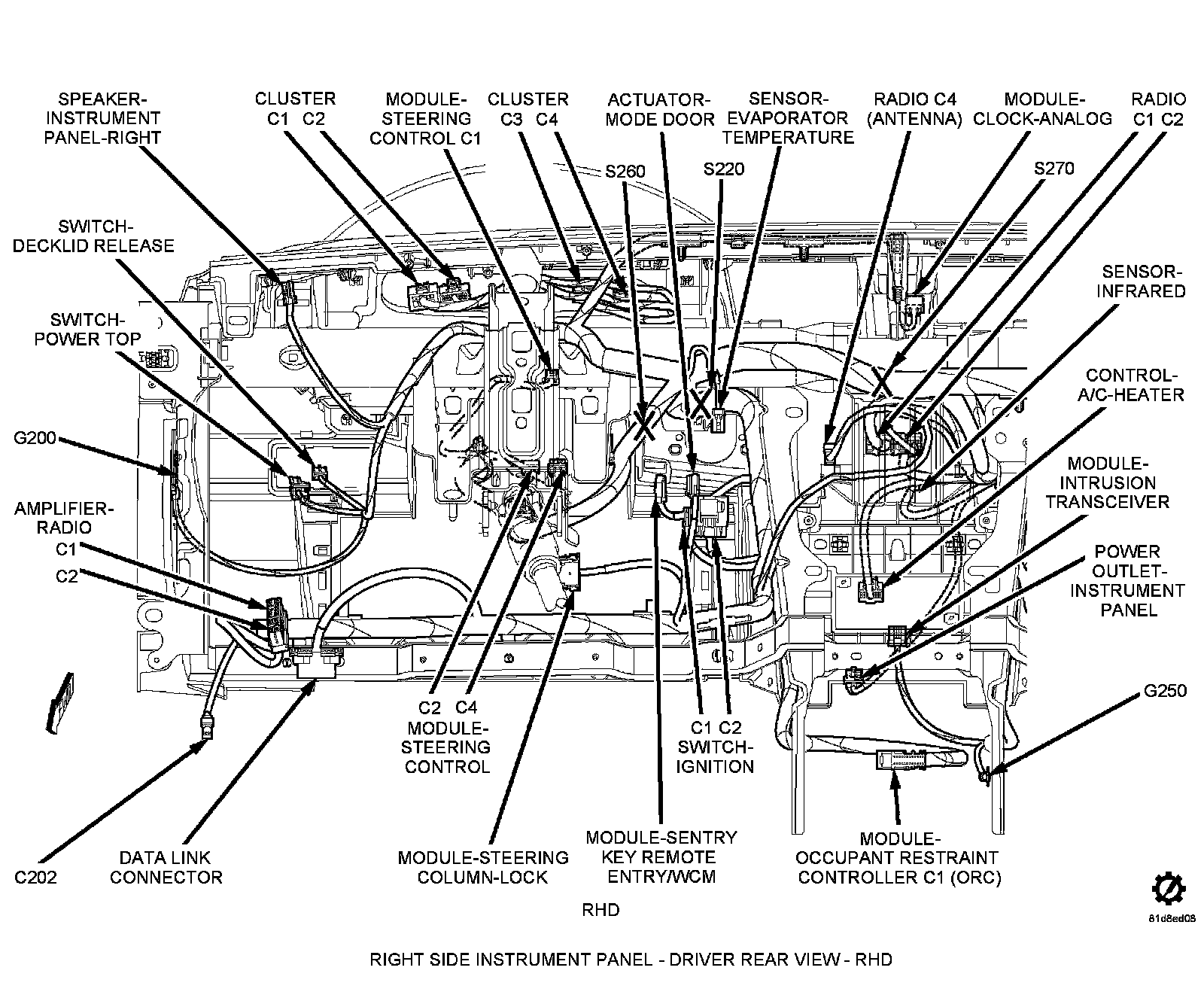

Component Location - 42
