Engine: Description and Operation

DESCRIPTION

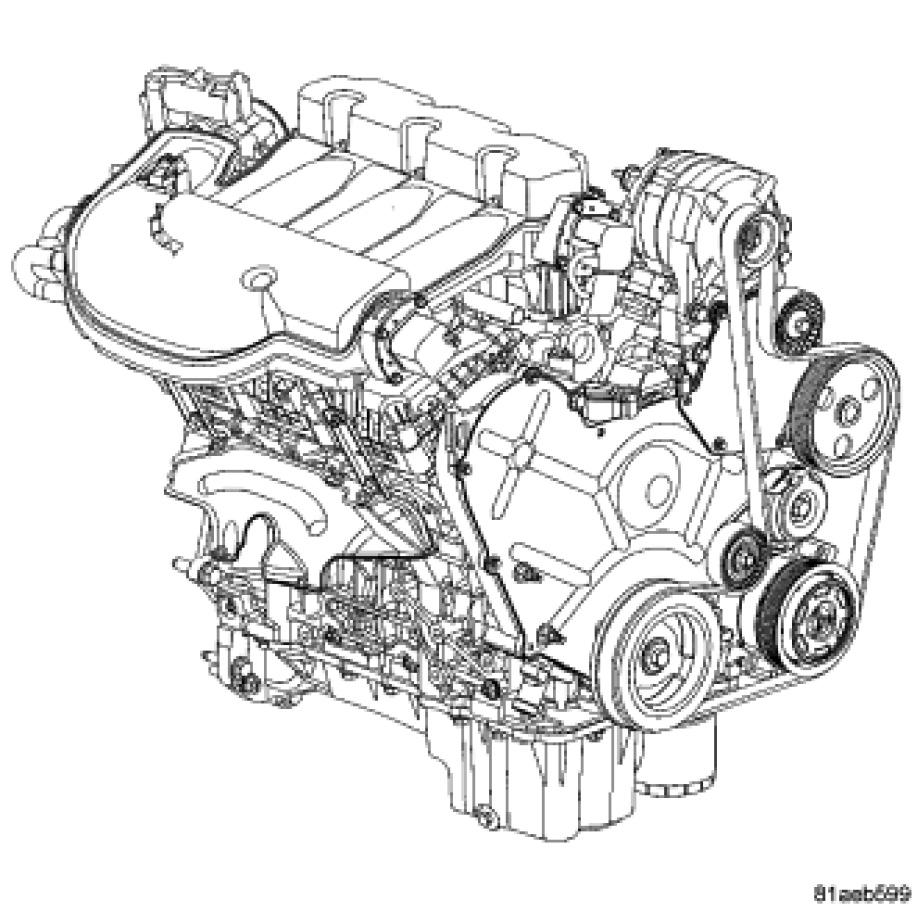

The 3.5 Liter 60 degree V-6 engine is a single overhead camshaft design with hydraulic lifters and four valves per cylinder. The engine does not have provisions for a free wheeling valve train.

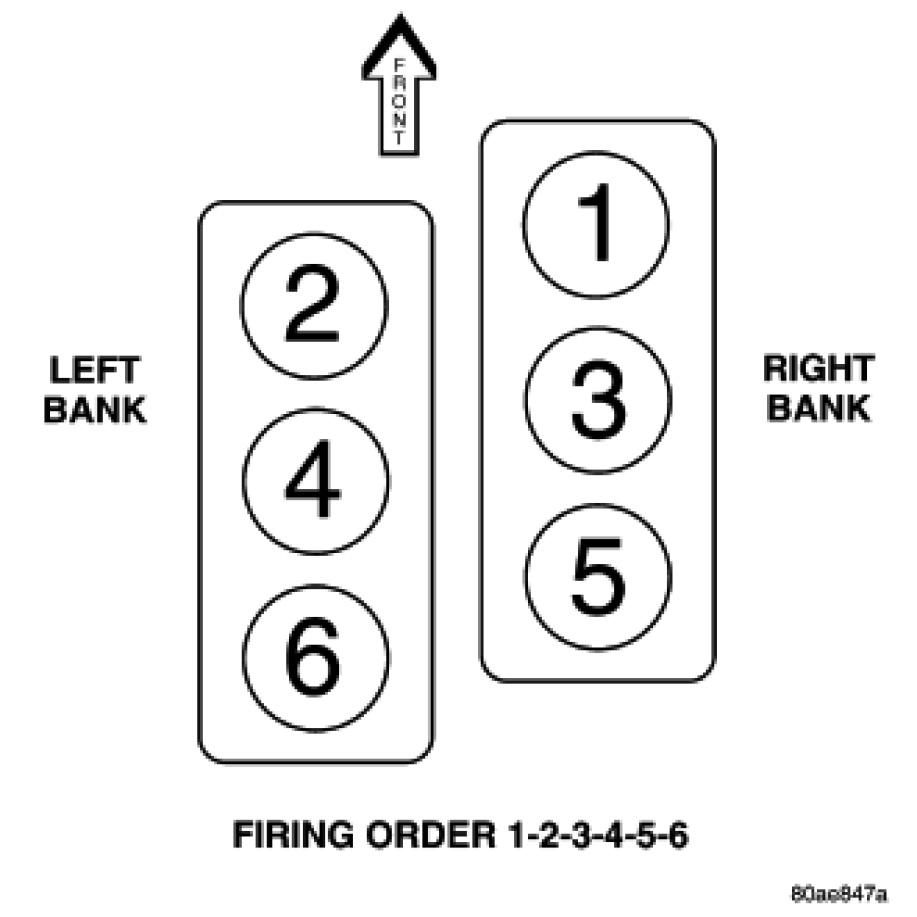

The cylinders are numbered from front to rear, with the right bank odd numbered, and the left bank even numbered. The firing order is 1-2-3-4-5-6.

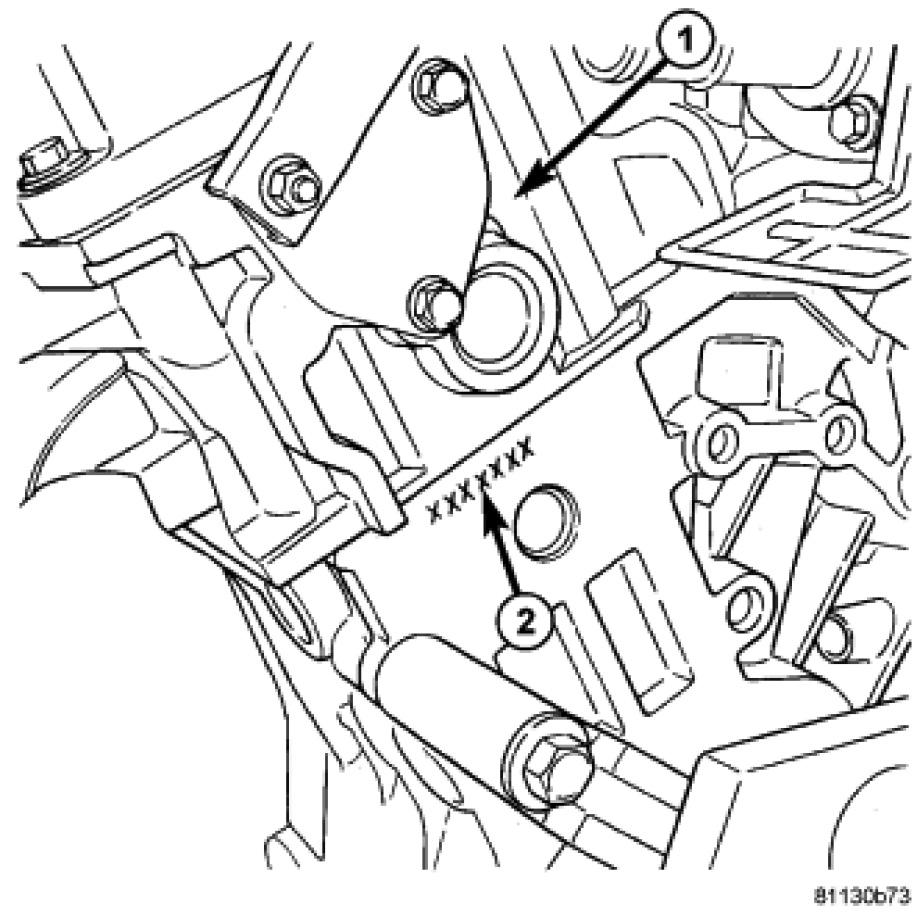

The engine identification number is located on the rear of engine block just below the left cylinder head.
