Lamp-Low Beam-Right

Component ID: 171
Component : LAMP-LOW BEAM-RIGHT

Connector:
Name : LAMP-LOW BEAM-RIGHT
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




A L44 20WT/TN RIGHT LOW BEAM OUTPUT
B Z920 20BK GROUND

Component Location - 1




Component Location - 6




Component Location - 2

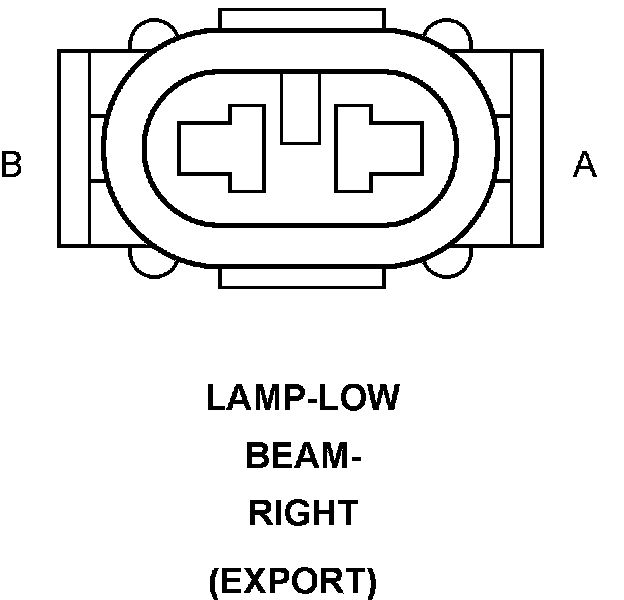

Connector:
Name : LAMP-LOW BEAM-RIGHT
Color :
# of pins : 2
Qualifier : (EXPORT)




A L44 20WT/TN RIGHT LOW BEAM OUTPUT
B Z920 20BK GROUND

Component Location - 1




Component Location - 6




Component Location - 2
